Parts Location — 2008 Lexus LS 460L Service Manual ~ FixVault

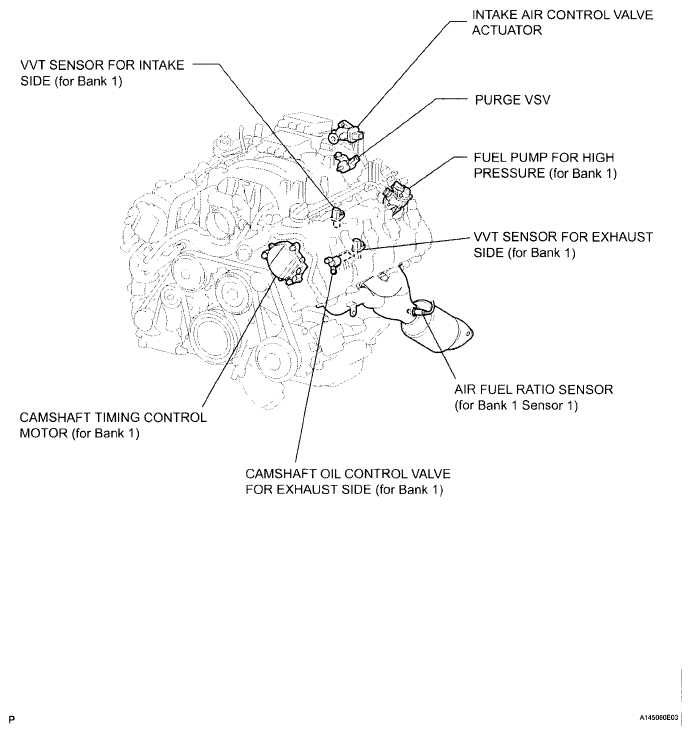

Fig 1: Identifying SFI System Components Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying SFI System Components Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying SFI System Components Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying SFI System Components Location (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying SFI System Components Location (5 Of 6)

Fig 6: Identifying SFI System Components Location (6 Of 6)
