System Diagram

  1. SYSTEM DIAGRAM

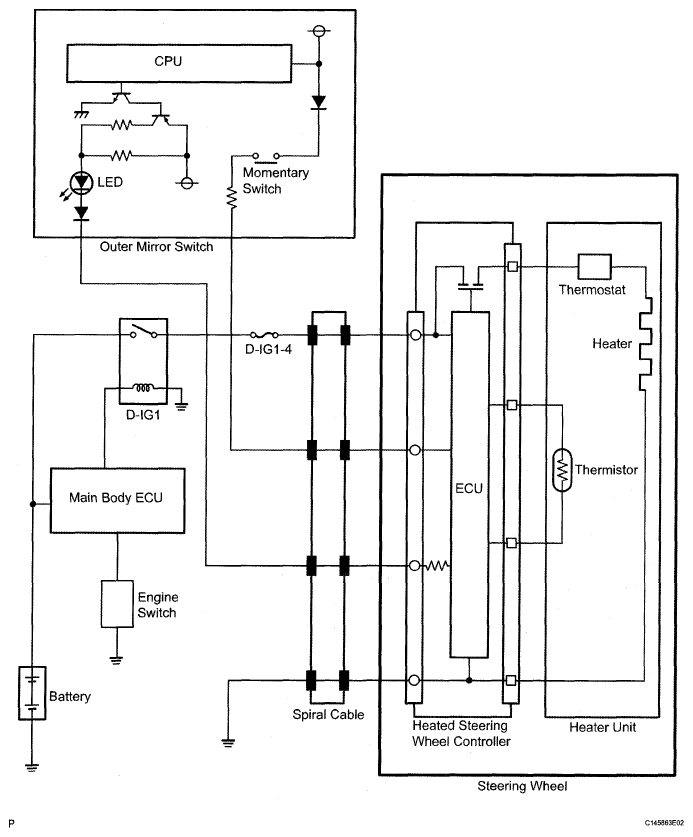

    Fig 1: Heated Steering Wheel System Diagram
    G04950155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
