Home › Lexus › 2008 › LS 460L › Repair and Diagnosis › Suspension › Front Suspension › Axle › Rear Axle Hub Bolt › Components

Rear Axle Hub Bolt: Components

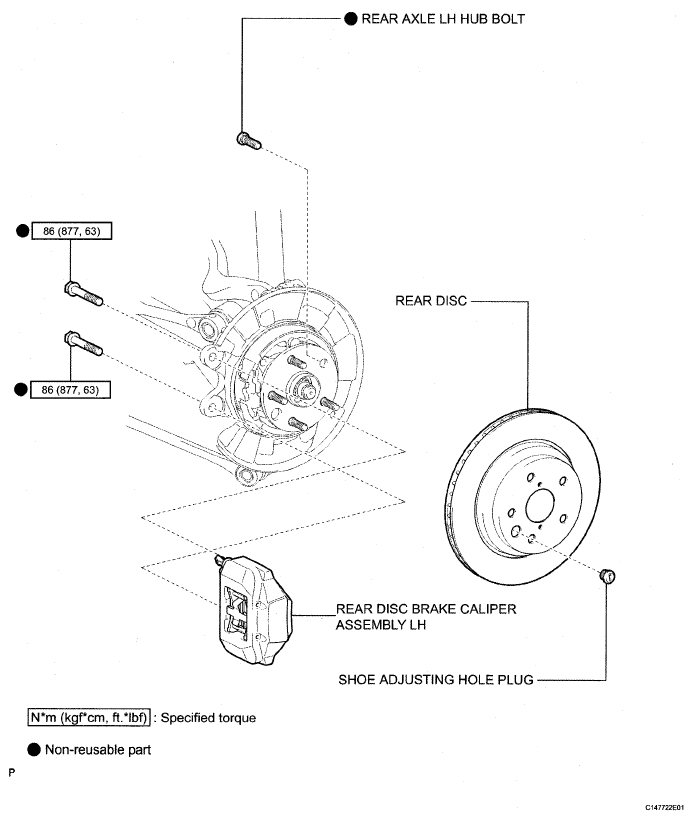

Fig 1: Rear Axle Hub Bolt Replacement Components With Torque Specifications
G04944049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
