Inspection Procedure

1. Check that the wireless door lock control functions operate with a transmitter (see OPERATION CHECK  )

   Result

   RESULT REFERENCE



   Result	Proceed to
   Wireless door lock control functions operate normally but turn signal light answer-back does not occur	A
   Wireless door lock control functions operate normally but wireless door lock buzzer answer-back does not occur	B
   Wireless door lock control functions do not operate	C

B:  Go to step  3

C: Go to  "ALL DOOR ENTRY LOCK/UNLOCK FUNCTIONS AND WIRELESS FUNCTIONS DO NOT OPERATE "

A: Go to Next Step

1. Check that the turn signal lights flash continuously when the hazard warning signal switch is pressed (see OPERATION CHECK )

   OK: Hazard warning lights flash continuously.

NG: Go to PROBLEM SYMPTOMS TABLE (LIGHTING SYSTEM)  (See PROBLEM SYMPTOMS TABLE )

OK: REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK)

1. Disconnect the L16 ECU connector
2. Disconnect the L30 controller connector
3. Measure the resistance according to the value(s) in the table below

   Standard resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   L16-18 (BZR3) - L30-1 (B)	Always	Below 1 Ω
   L16-19 (BZRG) - L30-2 (L)
   L16-18 (BZR3) or L30-1 (B) - Body ground	Always	10 kΩ or higher
   L16-19 (BZRG) or L30-2 (L) - Body ground

   Fig 1: Identifying L16 And L30 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

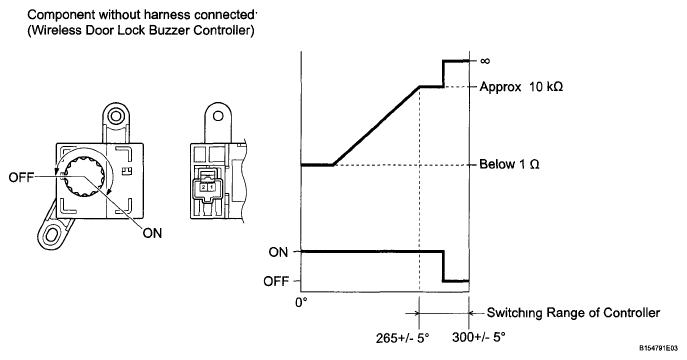

Fig 2: Wireless Door Lock Buzzer Controller Switch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the buzzer controller (see REMOVAL  ).
2. Measure the resistance according to the value(s) in the table below

   Standard resistance

   RESISTANCE REFERENCE



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	ON → OFF	Below 1 Ω → 10 kΩ or higher

NG: REPLACE WIRELESS DOOR LOCK BUZZER CONTROLLER  (See REMOVAL  )

OK: Go to Next Step

1. Disconnect the A28 buzzer connector
2. Disconnect the A52 ECU connector
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   A52-14 (BZR) - A28-1	Always	Below 1 Ω
   A28-2 - Body ground
   A52-14 (BZR) or A28-1 - Body ground	Always	10 kΩ or higher

   Fig 3: Identifying A28 Buzzer Connector Terminals And A52 ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Temporarily replace the wireless door lock buzzer with a new one (see REMOVAL  ).
2. Check that the wireless door lock buzzer sounds by using the transmitter LOCK/UNLOCK switch.

   OK: Wireless door lock buzzer sounds.

NG: Go to step 7

OK: END (WIRELESS DOOR LOCK BUZZER IS DEFECTIVE)

1. Temporarily replace the front multiplex network light ECU (front controller) with a new one
2. Check that the wireless door lock buzzer sounds by using transmitter LOCK/UNLOCK switch

   OK: Wireless door lock buzzer sounds.

NG: REPLACE CERTIFICATION ECU  (See REMOVAL )

OK: END (FRONT MULTIPLEX NETWORK LIGHT ECU IS DEFECTIVE)
