Roof Headlining: Reassembly

  1. INSTALL NO. 1 ROOF WIRE
    1. for Standard Type

      Install the No 1 roof wire

      1. Apply double-sided tape to the areas of the roof headlining as shown in the illustration
      2. Align the roof wire's wire harness marking to the roof headlining front part (A), and apply tape {width. 8 mm (0 314 in)} to fix the roof wire in place.
      3. Remove the peeling paper of the double-sided tape, and place the roof wire on the roof headlining along the wire harness marking areas.

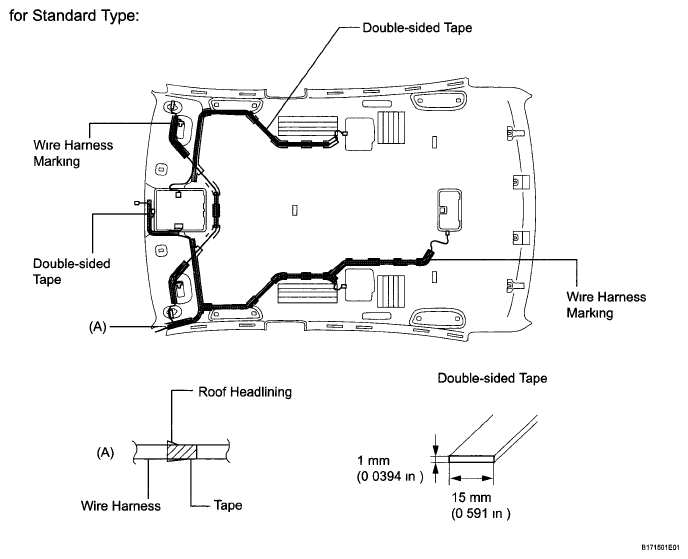

        Fig 1: Identifying Wire Harness Marking Areas - For Standard Type
        G05786899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Fix the roof wire in place by applying vinyl tape to the roof wire's wire harness marking areas as shown in the illustration For areas near connectors, apply the vinyl tape as shown in the illustration (A)

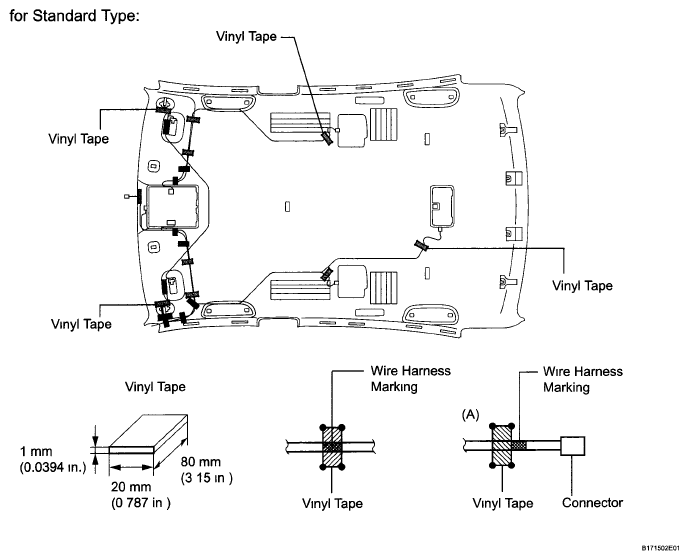

      Fig 2: Identifying Wire Harness Marking Areas - For Standard Type
      G05786900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Sliding Roof

      Install the No. 1 roof wire

      1. Apply double-sided tape to the areas of the roof headlining as shown in the illustration.
      2. Align the roof wire's wire harness marking to the roof headlining front part (A), and apply tape {width- 8 mm (0 314 in.)} to fix the roof wire in place
      3. Remove the peeling paper of the double-sided tape, and place the roof wire on the roof headlining along the wire harness marking areas
      4. w/ Driver Monitor Camera.

        Align the roof headlining's protruding part with the roof wire's wire harness marking as shown in the illustration, and fix the roof wire in place.

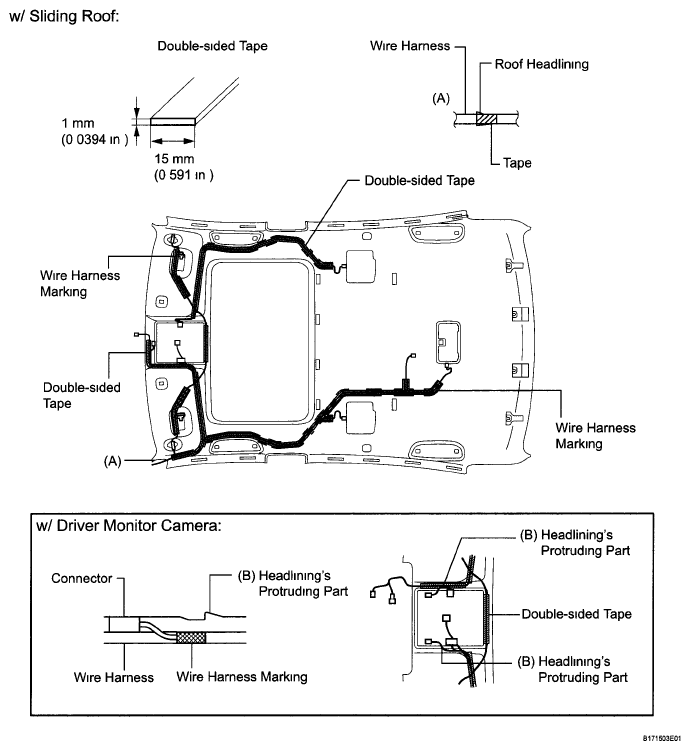

        Fig 3: Identifying Wire Harness Marking Areas - W/ Sliding Type
        G05786901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Fix the roof wire in place by applying vinyl tape to the roof wire's wire harness marking areas as shown in the illustration. For areas near connectors, apply the vinyl tape as shown in the illustration (A)

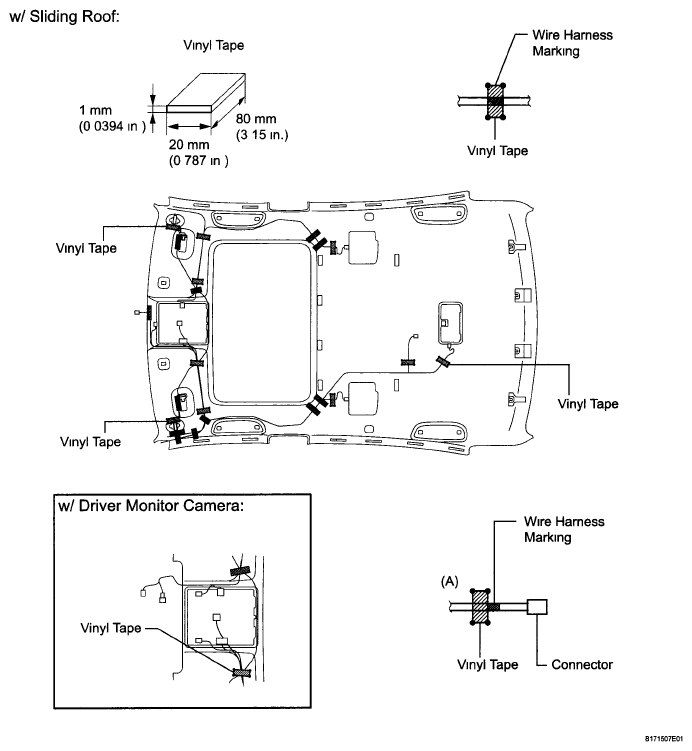

    Fig 4: Identifying Wire Harness Marking Areas - W/ Sliding Type
    G05786902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ROOF SILENCER PAD
    1. for Standard Type.

      Install the roof silencer pad

      1. Align the markings on the roof headlining with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
      Fig 5: Identifying Roof Silencer Pad - For Standard Type
      G05786903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Standard Type, w/ Rear Cooler.

      Install the roof silencer pad.

      1. Align the markings on the roof headlining with the roof silencer pads and install the pads using double-sided tape as shown in the illustration
      Fig 6: Identifying Roof Silencer Pad - Standard Type, W/ Rear Cooler
      G05786904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Sliding Roof:

      Install the roof silencer pad.

      1. Align the markings on the roof headlining with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
      Fig 7: Identifying Roof Silencer Pad - W/ Sliding Roof
      G05786905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Sliding Roof, w/ Rear Cooler:

      Install the roof silencer pad.

      1. Align the markings on the roof headlining with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
      Fig 8: Identifying Roof Silencer Pad - W/ Sliding Roof, W/ Rear Cooler
      G05786906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/ Rear Seat Entertainment System:

      Install the roof silencer pad.

      1. Align the markings on the roof headlining with the roof silencer pads and install the pads using double-sided tape as shown in the illustration.
