Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

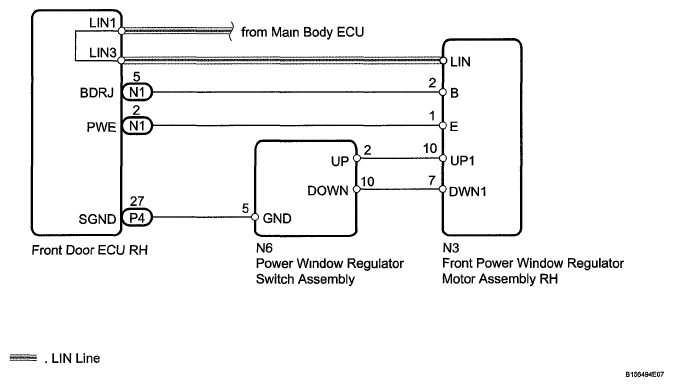

Fig 1: Front Passenger Side Power Window Switch - Wiring Diagram
G05776648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
