Lexus
›
2008
›
LS 600hL
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control
›
Electronically Controlled Brake System
›
Parts Location
Parts Location

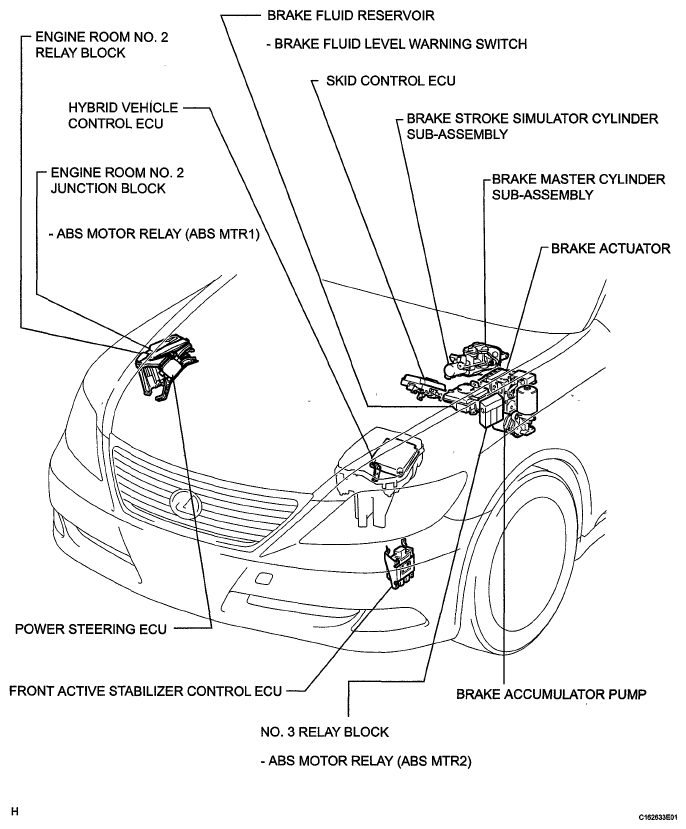

Fig 1: Identifying Electronically Controlled Brake System Parts Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

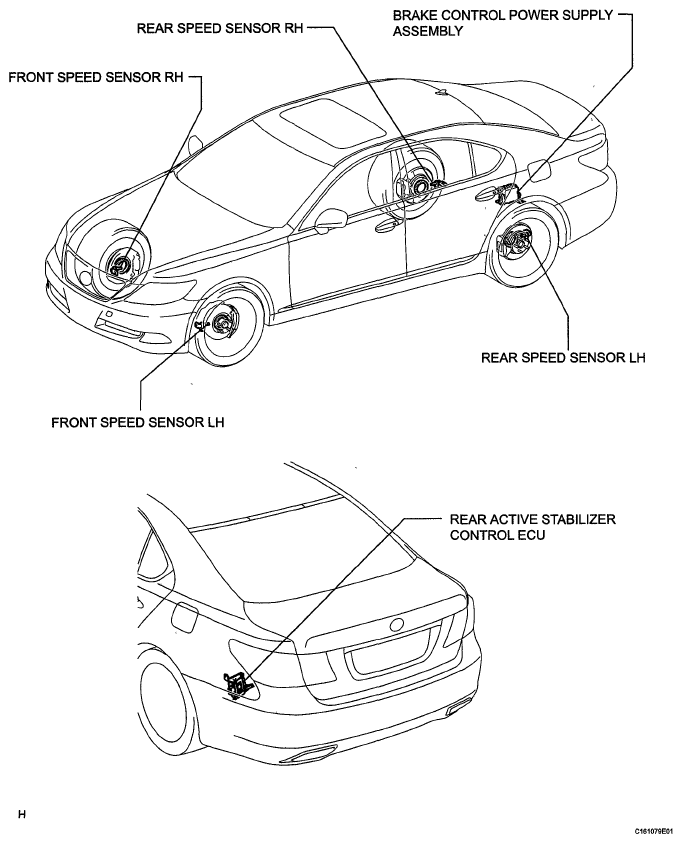

Fig 2: Identifying Electronically Controlled Brake System Parts Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

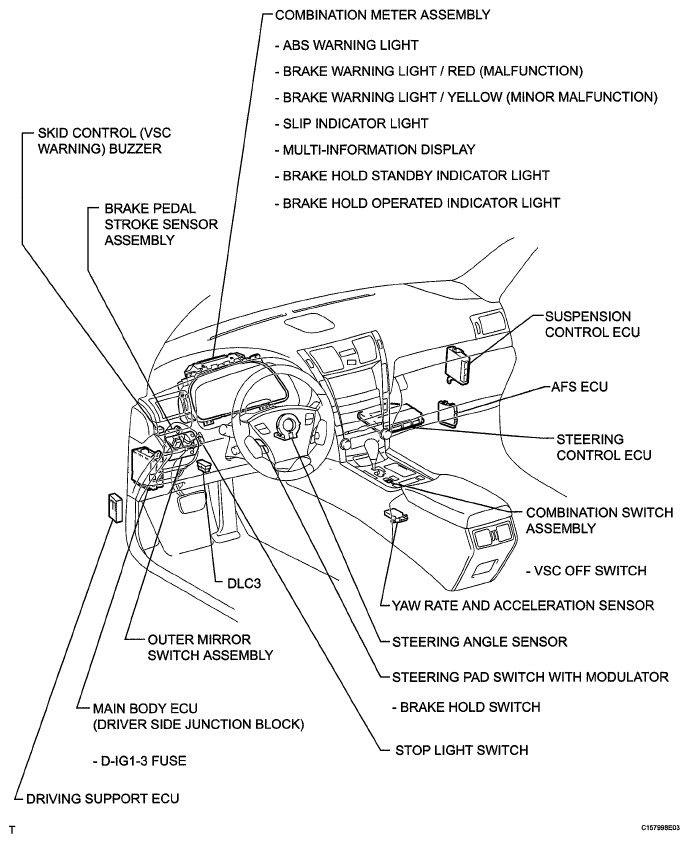

Fig 3: Identifying Electronically Controlled Brake System Parts Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

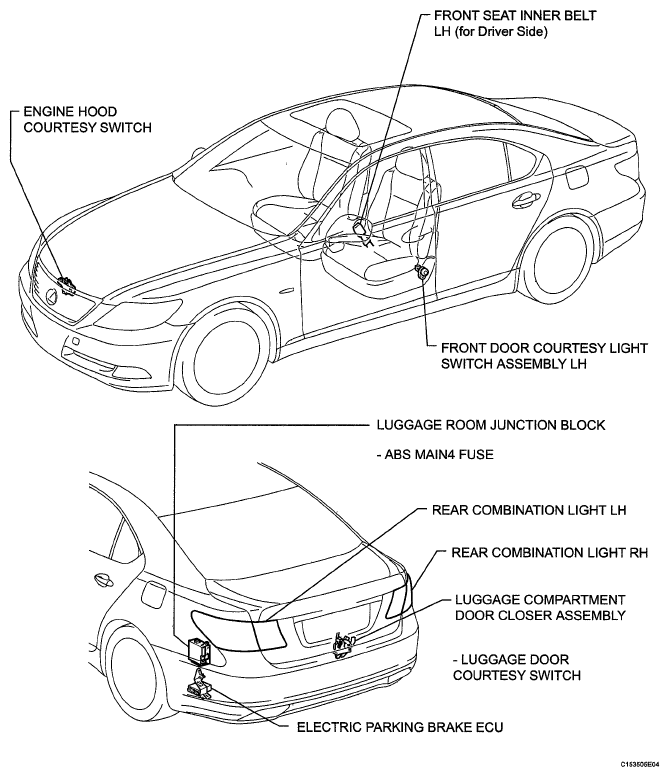

Fig 4: Identifying Electronically Controlled Brake System Parts Location (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
