Garage Door Opener: Notes

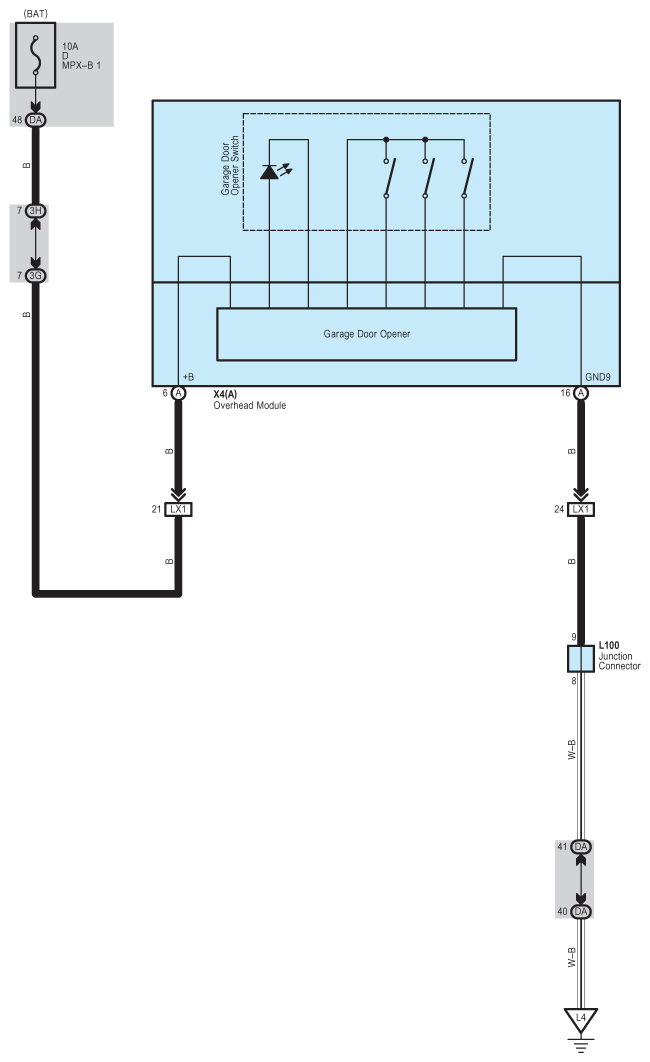

Fig 1: Garage Door Opener - Circuit Diagram

G07593095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
