Power Outlet - 115V
›
Notes
Power Outlet - 115V: Notes

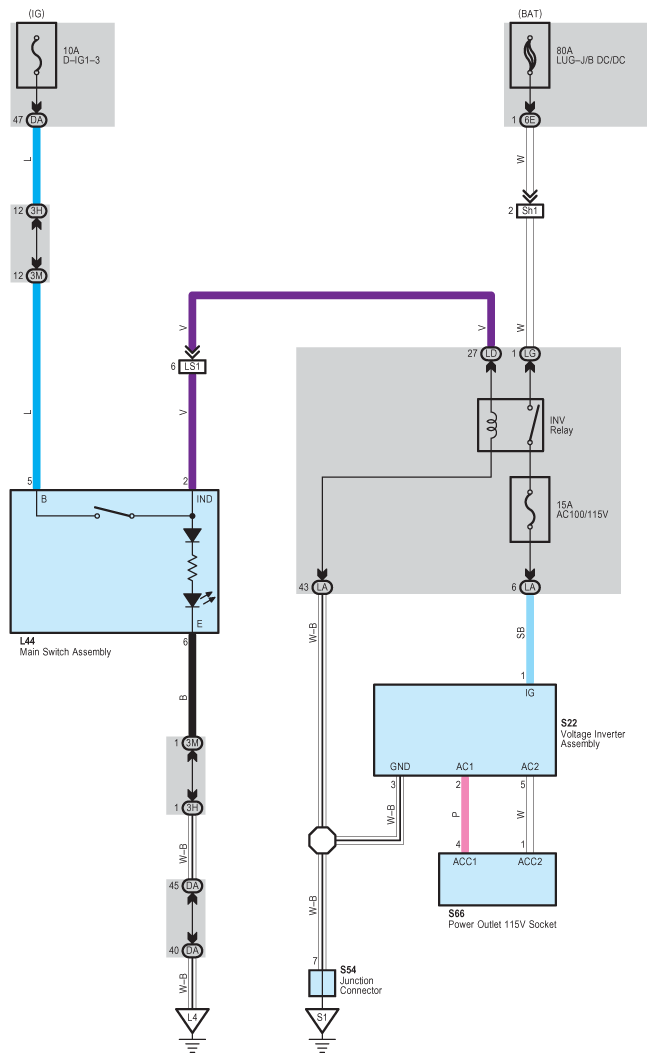

Fig 1: Power Outlet - 115V - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
