Cooling System (Mechanical): Cooling: Thermostat: Components

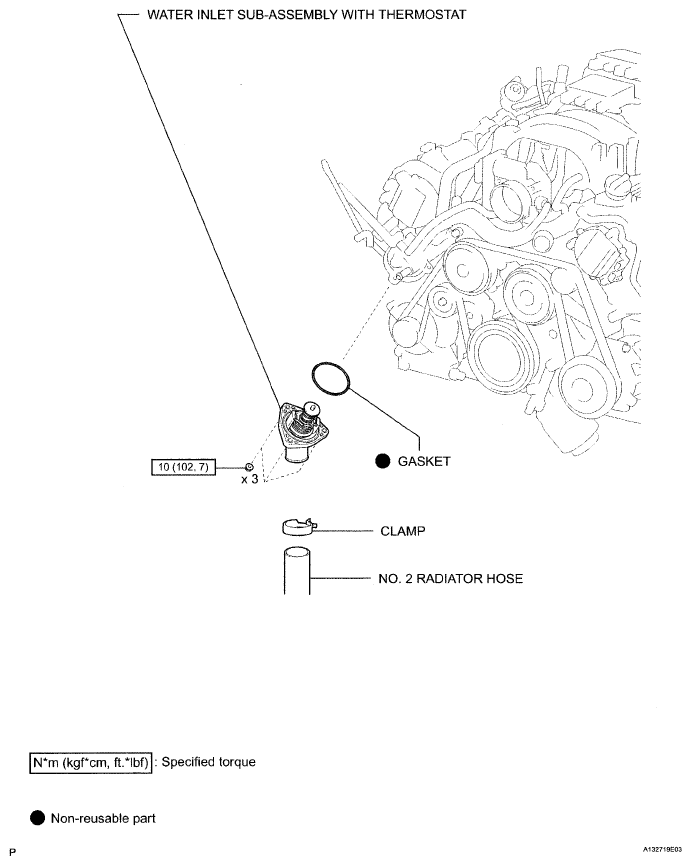

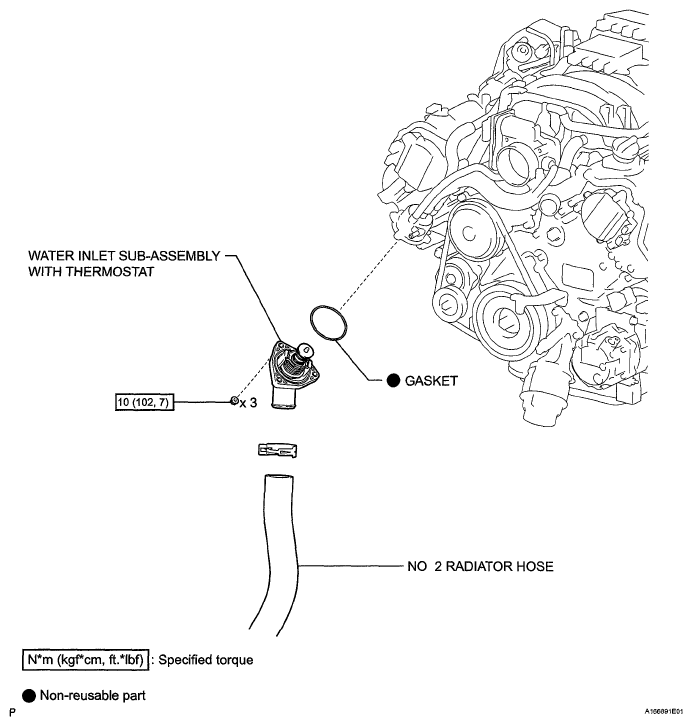

Fig 1: Thermostat Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

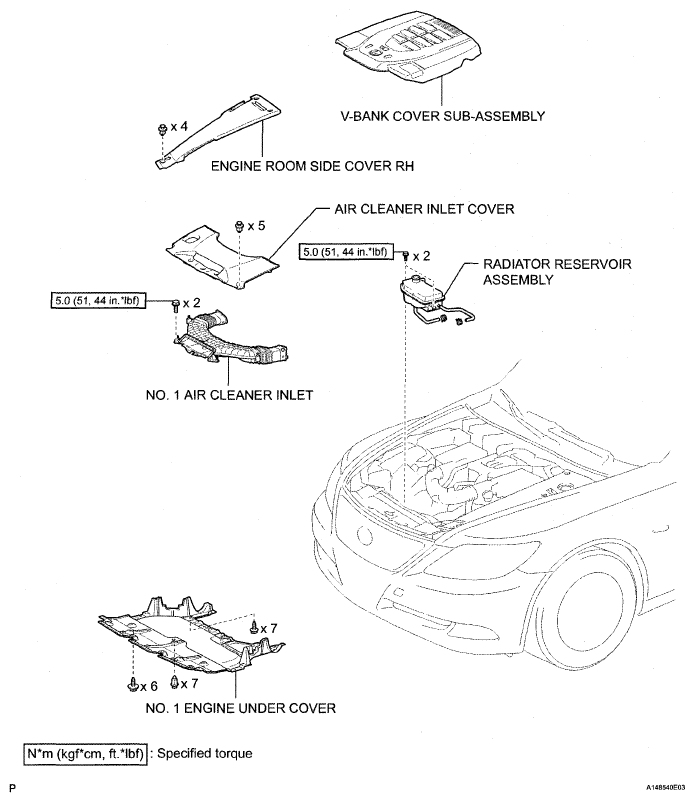

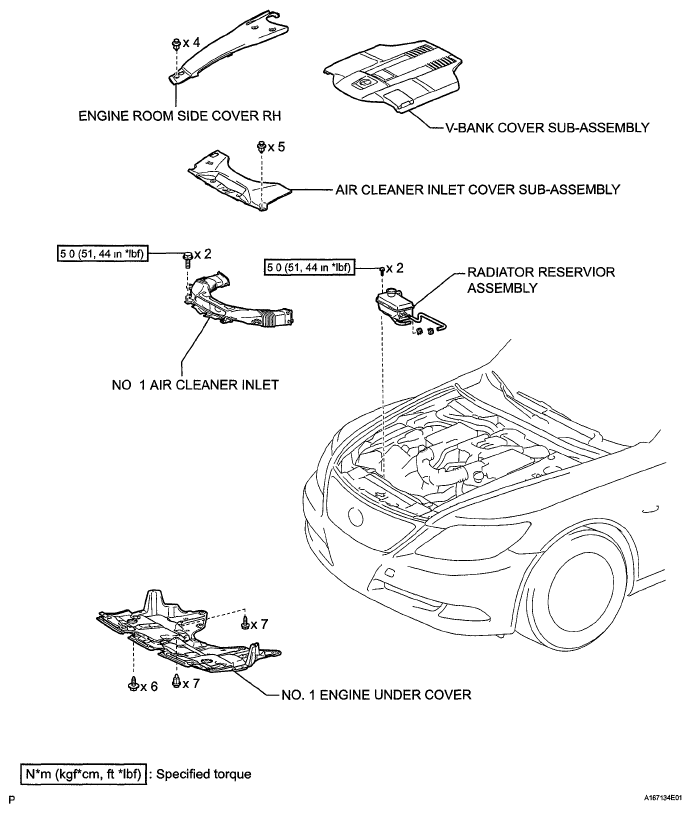

Fig 2: Thermostat Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
