Engine Control System - Circuit Tests, Component Removal, Inspection & Installation
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

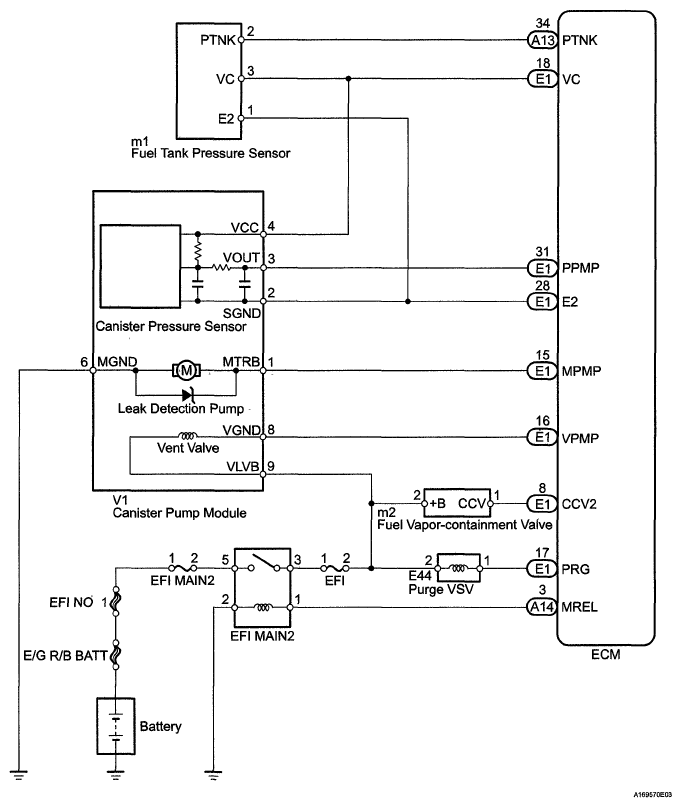

Fig 1: EVAP System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
