Heated Oxygen Sensor
›
Components
Heated Oxygen Sensor: Components

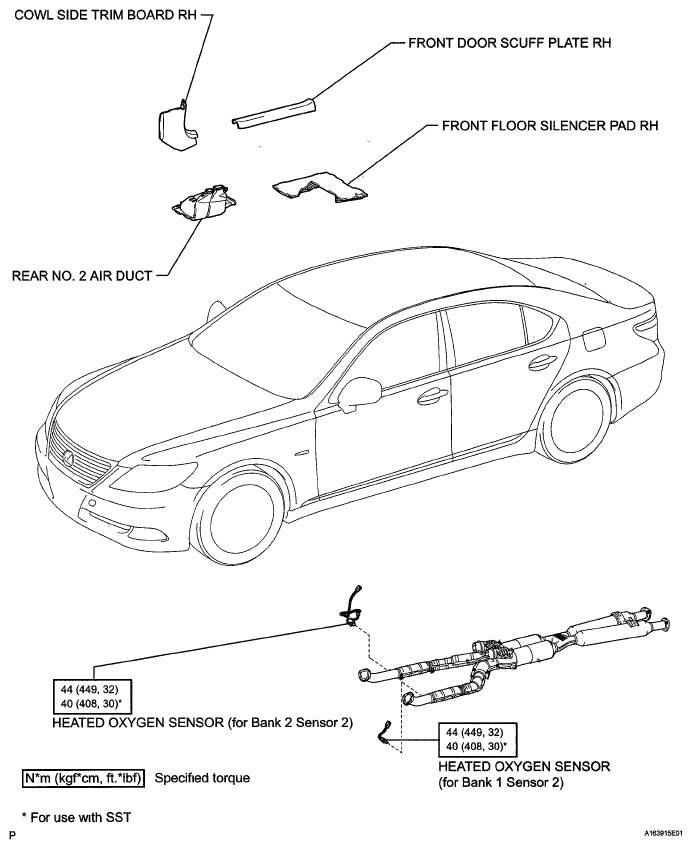

Fig 1: Heated Oxygen Sensor With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
