Engine Control System - Circuit Tests, Component Removal, Inspection & Installation
›
Knock Sensor
›
Components
Knock Sensor: Components

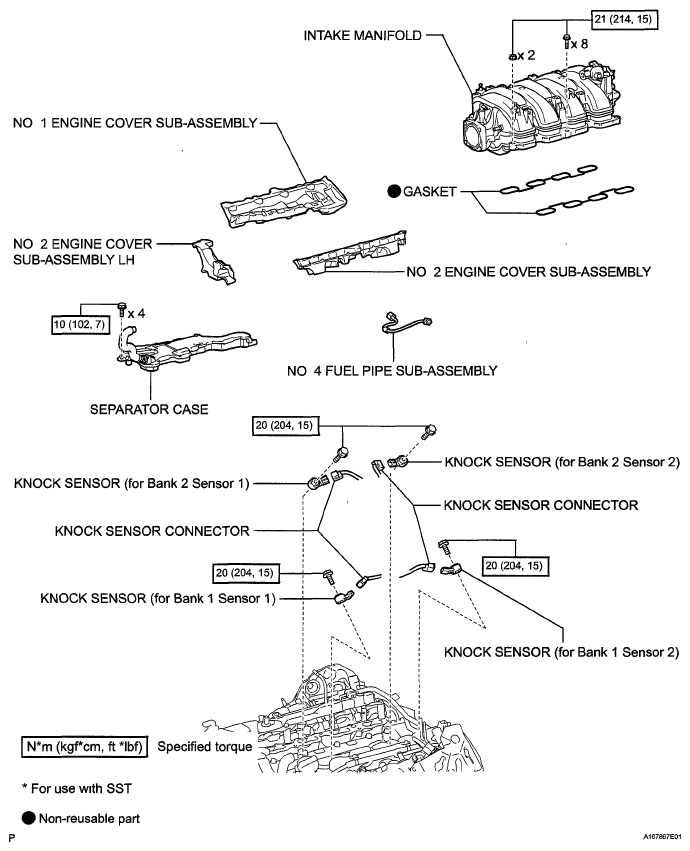

Fig 1: Lnock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
