VC Output Circuit: Wiring Diagram

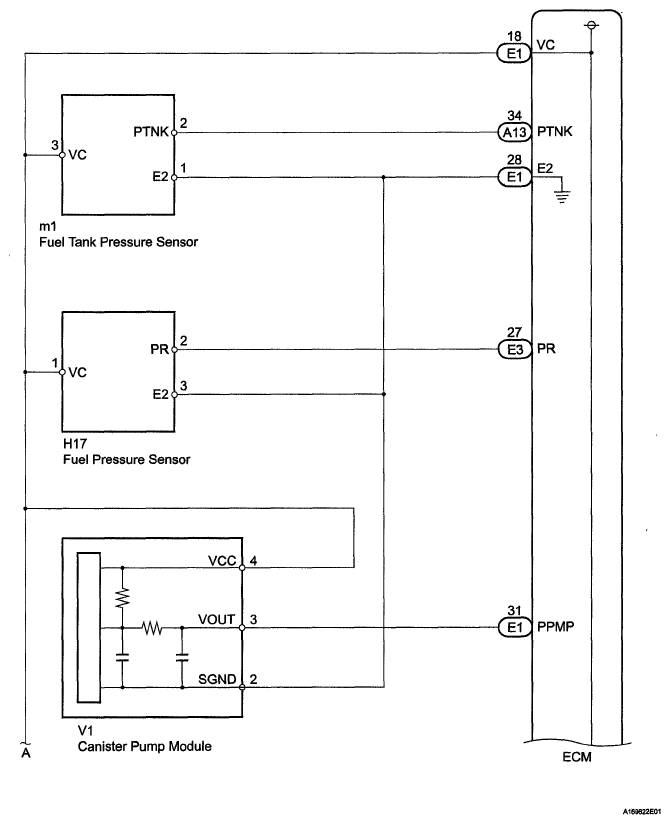

Fig 1: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

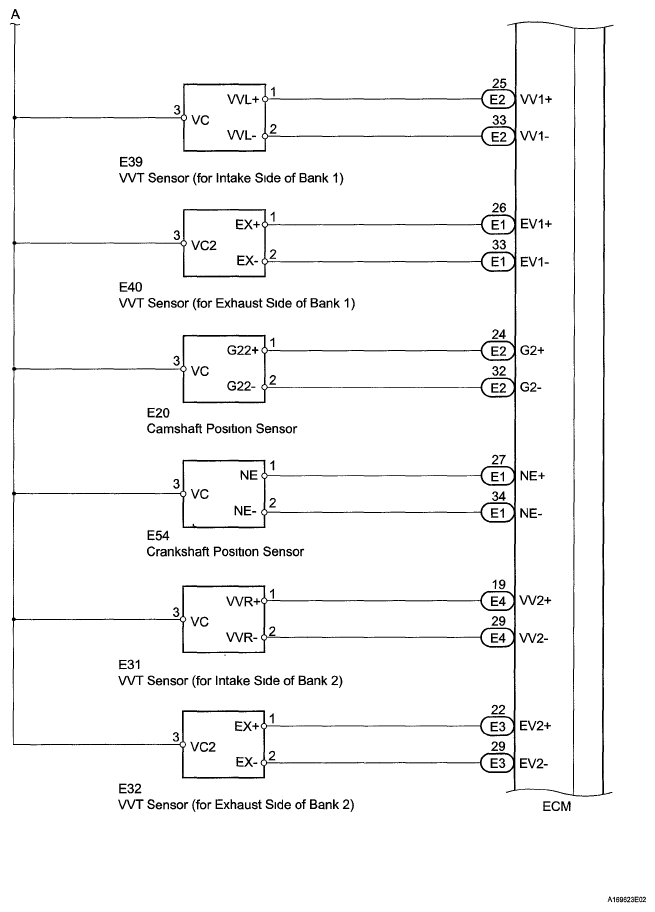

Fig 2: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
