Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel
›
Fuel System
›
Parts Location
Parts Location

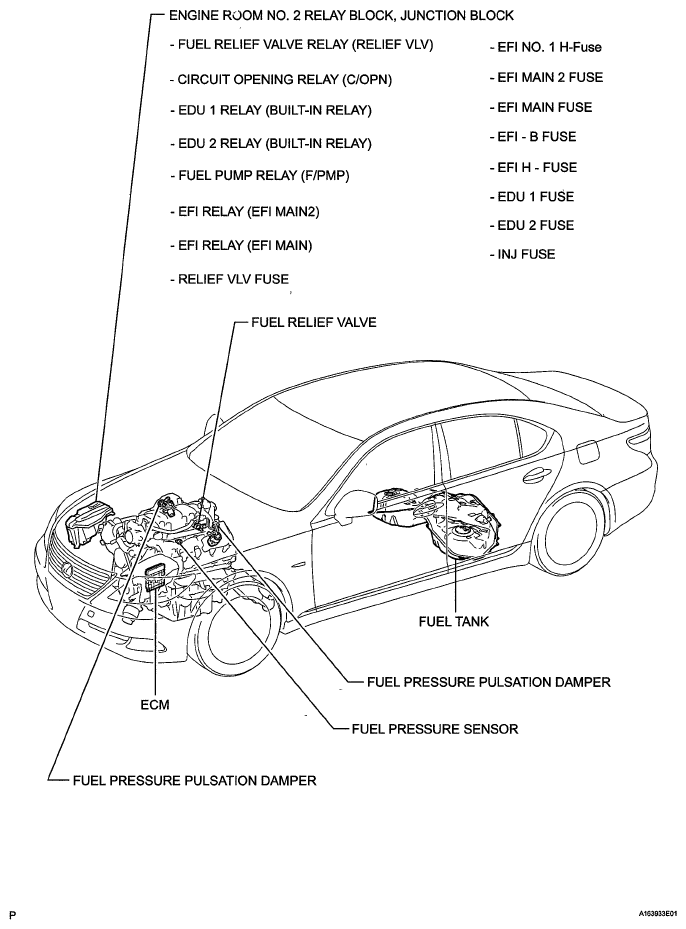

Fig 1: Identifying Fuel System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

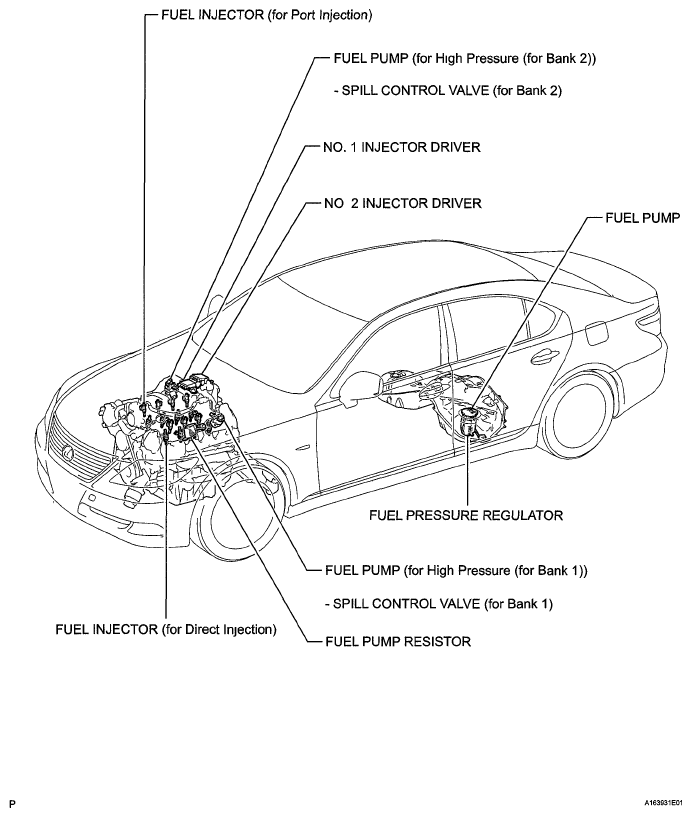

Fig 2: Identifying Fuel System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
