HV Battery: Components

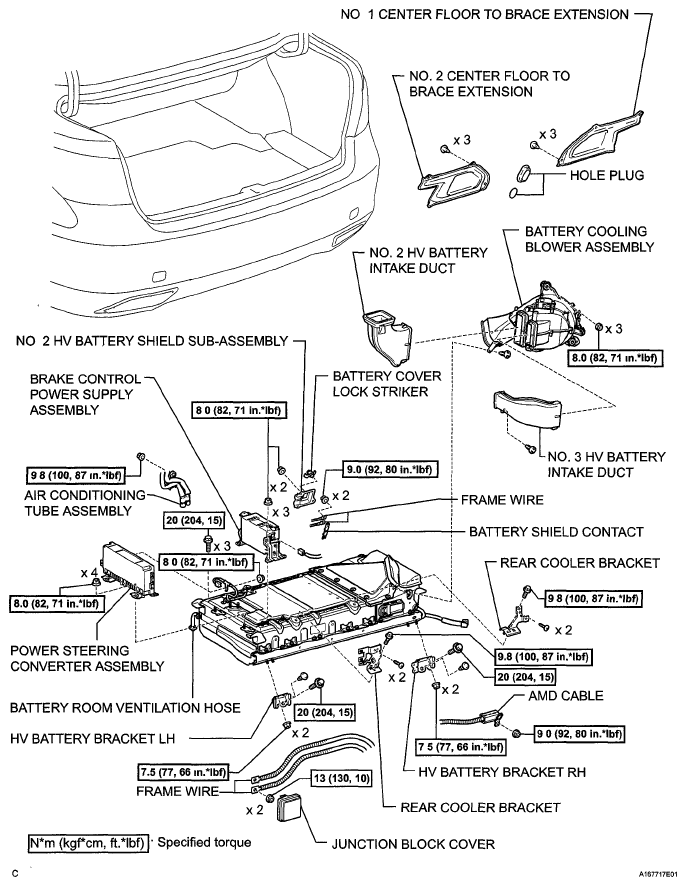

Fig 1: HV Battery Replacement Components With Torque Specification (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

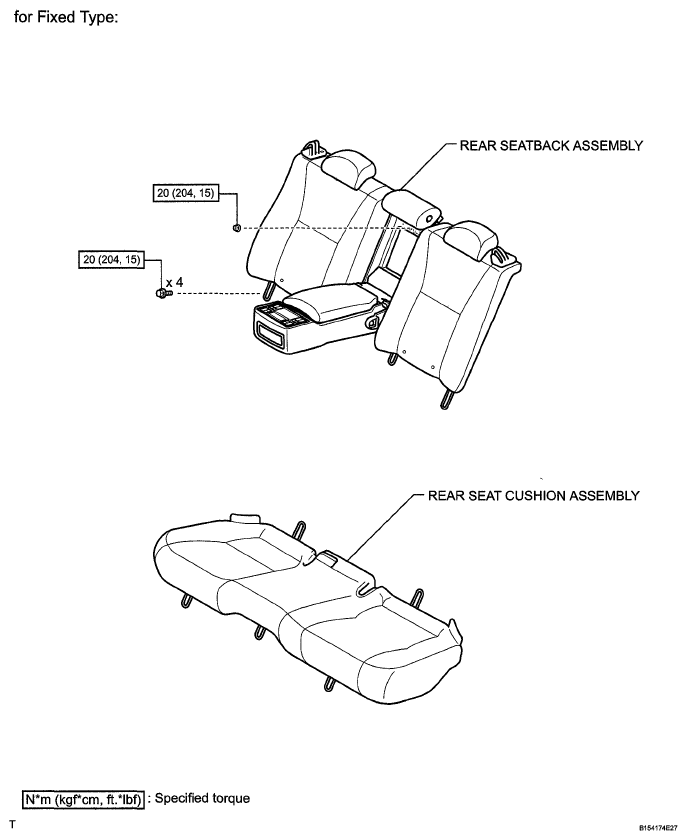

Fig 2: HV Battery Replacement Components With Torque Specification (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

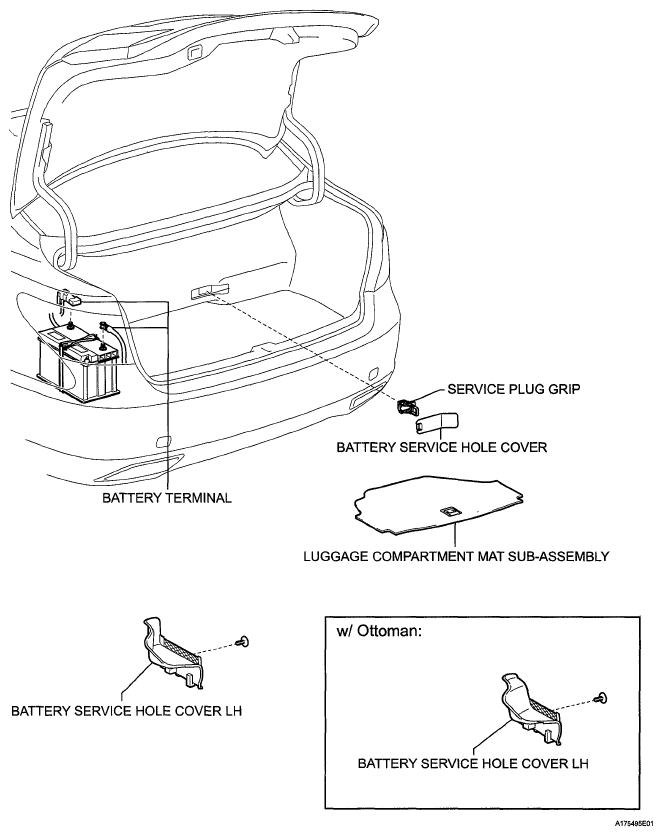

Fig 3: HV Battery Replacement Components With Torque Specification (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

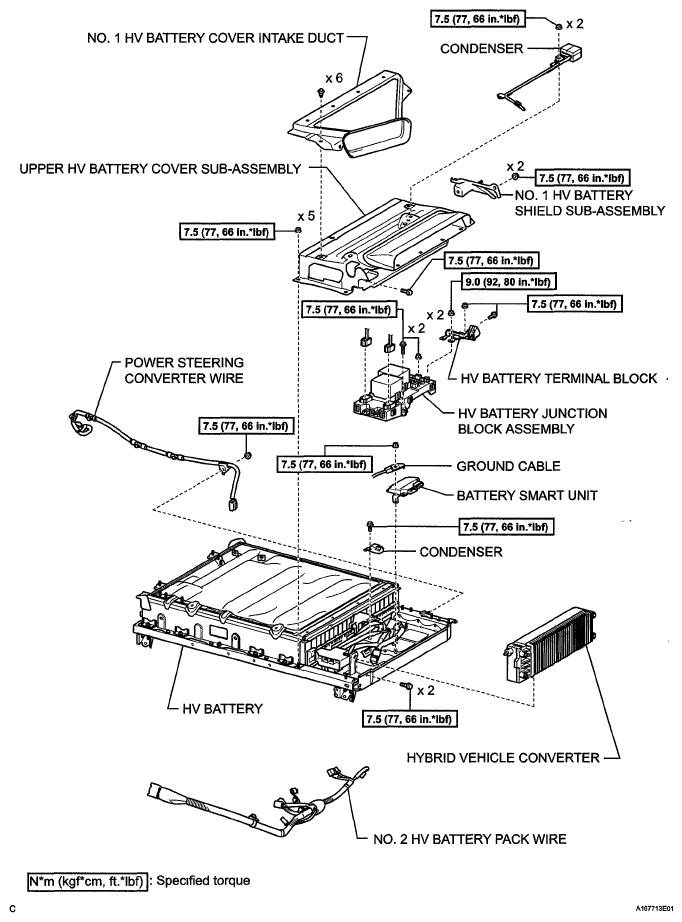

Fig 4: HV Battery Replacement Components With Torque Specification (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

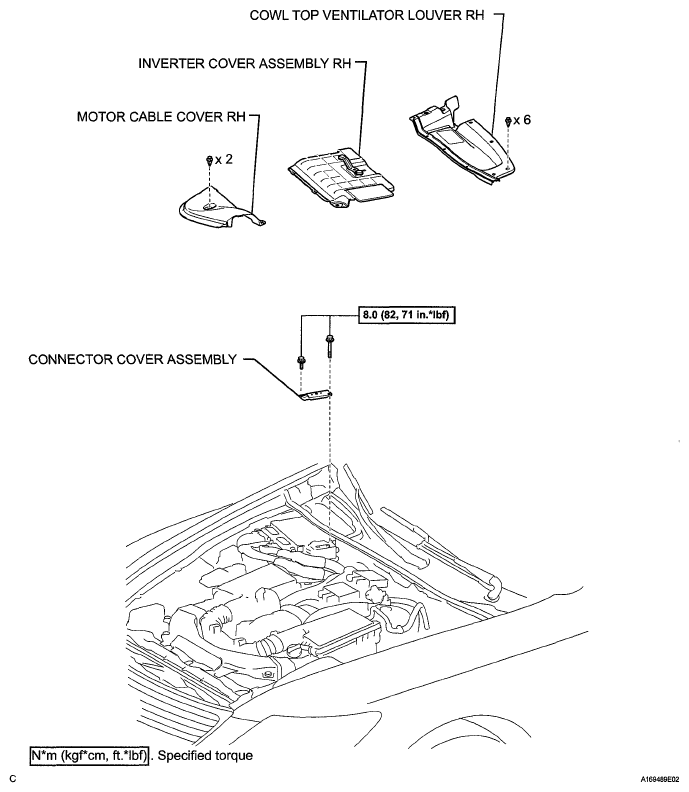

Fig 5: HV Battery Replacement Components With Torque Specification (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

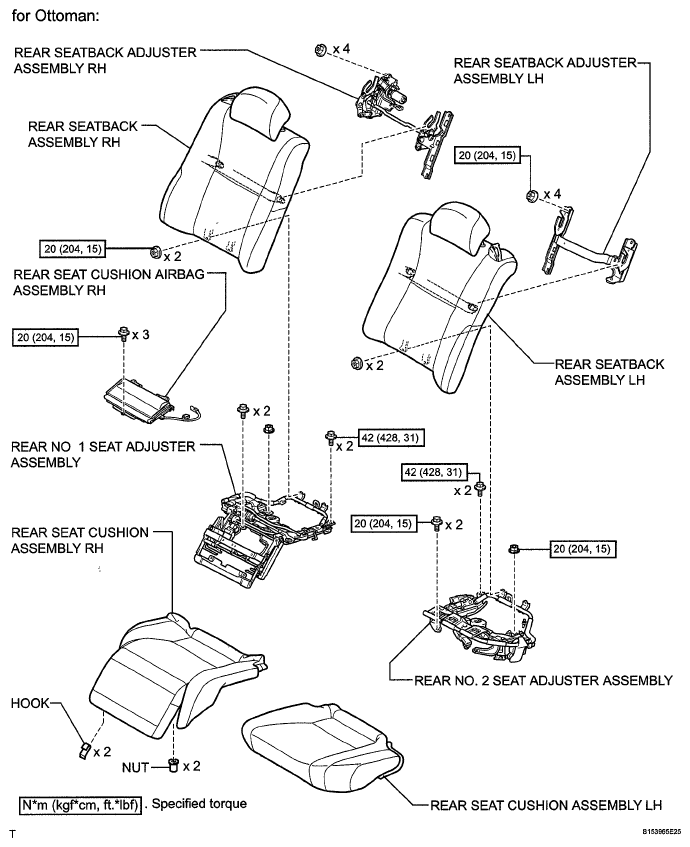

Fig 6: HV Battery Replacement Components With Torque Specification (6 Of 8)

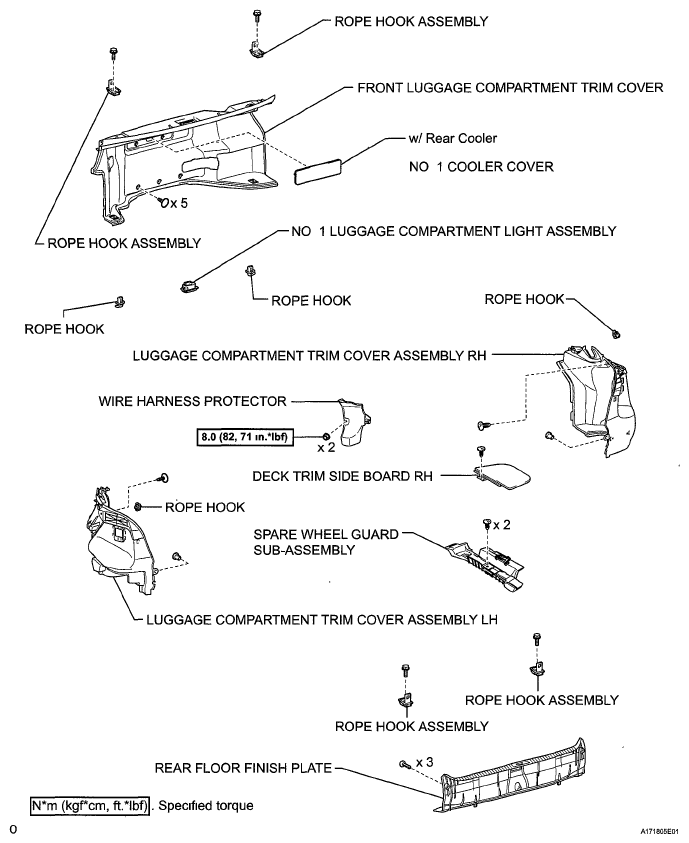

Fig 7: HV Battery Replacement Components With Torque Specification (7 Of 8)

Fig 8: HV Battery Replacement Components With Torque Specification (8 Of 8)
