System Diagram

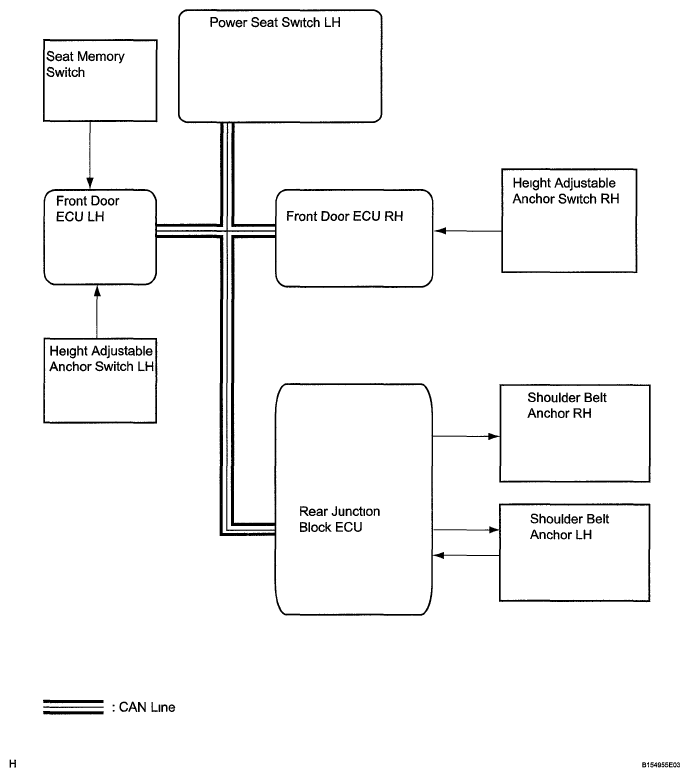

Fig 1: Power Shoulder Belt Anchorage - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Front Door ECU LH	Rear Junction Block ECU	Shoulder belt anchor switch signal	CAN
Front Door ECU LH	Power Seat Switch LH	Seat memory switch signal	CAN
Power Seat Switch LH	Rear Junction Block ECU	Memory signal	CAN
Rear Junction Block ECU	Power Seat Switch LH	Shoulder belt sensor signal	CAN
Front Door ECU RH	Rear Junction Block ECU	Shoulder belt anchor switch signal	CAN
