Oil Pump Relay: Components

Fig 1: Identifying Oil Pump Relay Replacement Components (1 Of 3)
G05781068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Oil Pump Relay Replacement Components With Torque Specification (2 Of 3)
G05781069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

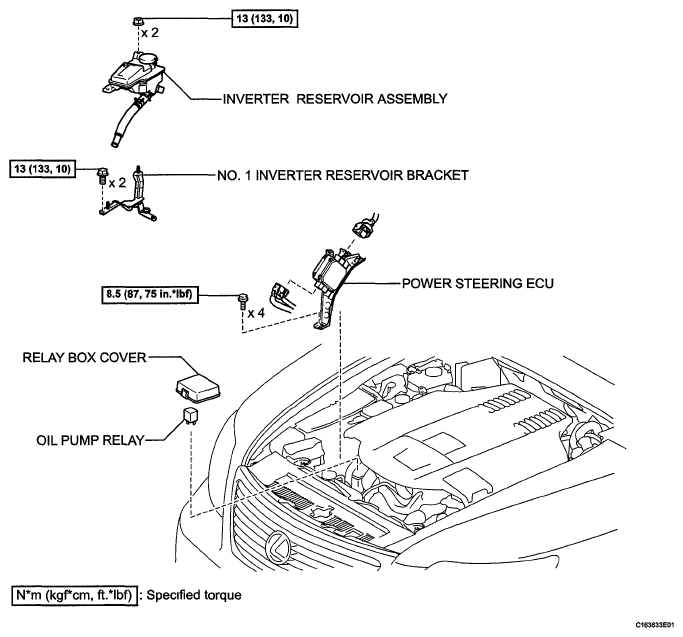

Fig 3: Identifying Oil Pump Relay Replacement Components With Torque Specifications (3 Of 3)
G05781070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
