Television Display: Removal

REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
- w/ Navigation System:
  After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE NO. 1 ROOF LINING TRIM COVER
1. Detach the 4 claws and remove the cover.

  Fig 1: Identifying No. 1 Roof Lining Trim Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 ROOF LINING TRIM COVER
1. Detach the 4 claws and remove the cover.

  Fig 2: Identifying No. 2 Roof Lining Trim Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF CONSOLE BOX ASSEMBLY
1. Remove the 2 bolts.
2. Detach the 4 clips and 2 claws.
3. Disconnect the connector and remove the roof console box.
REMOVE TELEVISION DISPLAY ASSEMBLY
1. Disconnect the connectors.
2. Remove the 5 bolts.

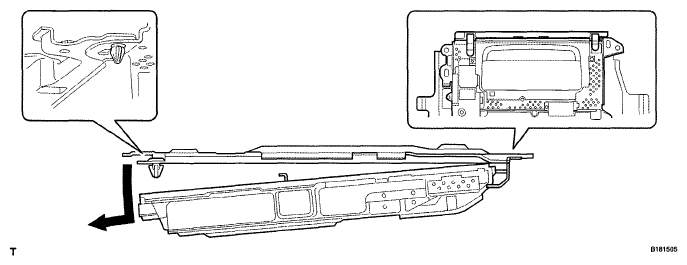

3. Detach the clips and move the television display as shown in the illustration to detach the claws and remove it.

  Fig 4: Locating Television Display Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 5: Identifying Television Display Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY
1. Remove the sliding roof housing (See REMOVAL ).
REMOVE TELEVISION DISPLAY BRACKET
1. Remove the 4 nuts and bracket.

  Fig 6: Identifying Television Display Bracket Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
