Stereo Component Amplifier: Components

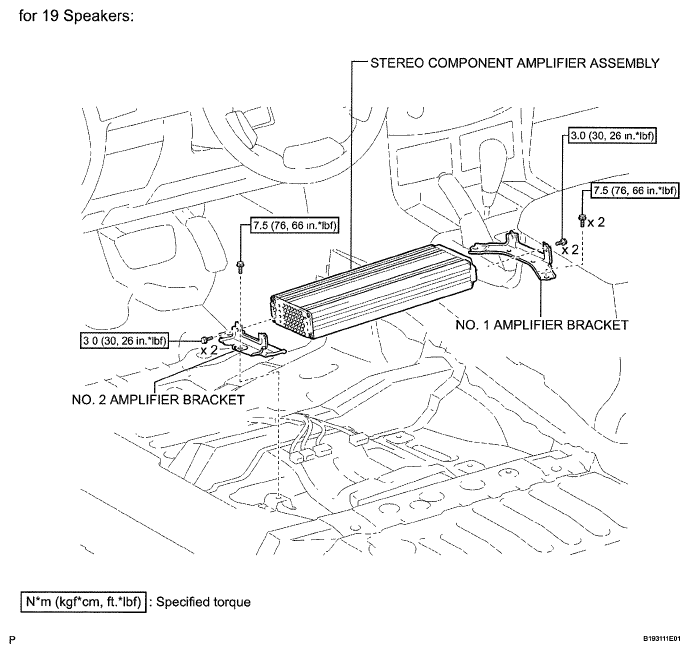

Fig 1: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Stereo Component Amplifier Replacement Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Stereo Component Amplifier Replacement Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Stereo Component Amplifier Replacement Components (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

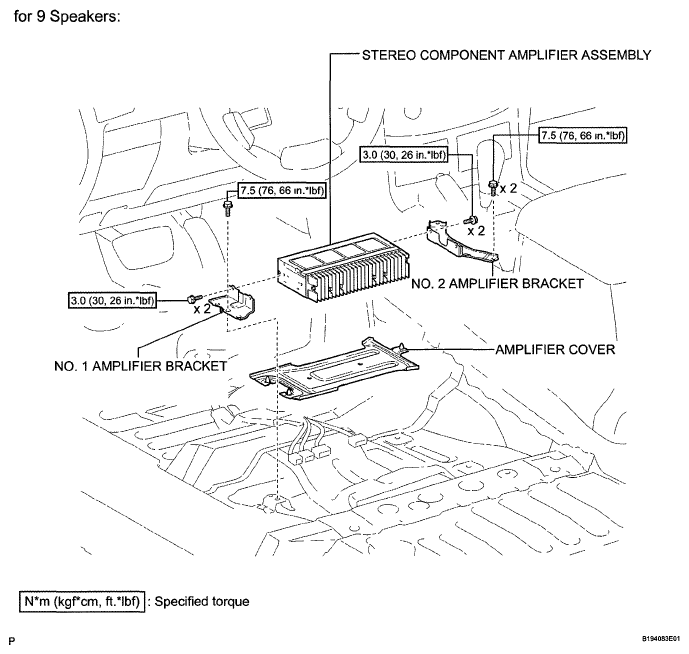

Fig 7: Identifying Stereo Component Amplifier Replacement Components With Torque Specifications (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
