Display and Navigation Assembly Communication Error: Wiring Diagram

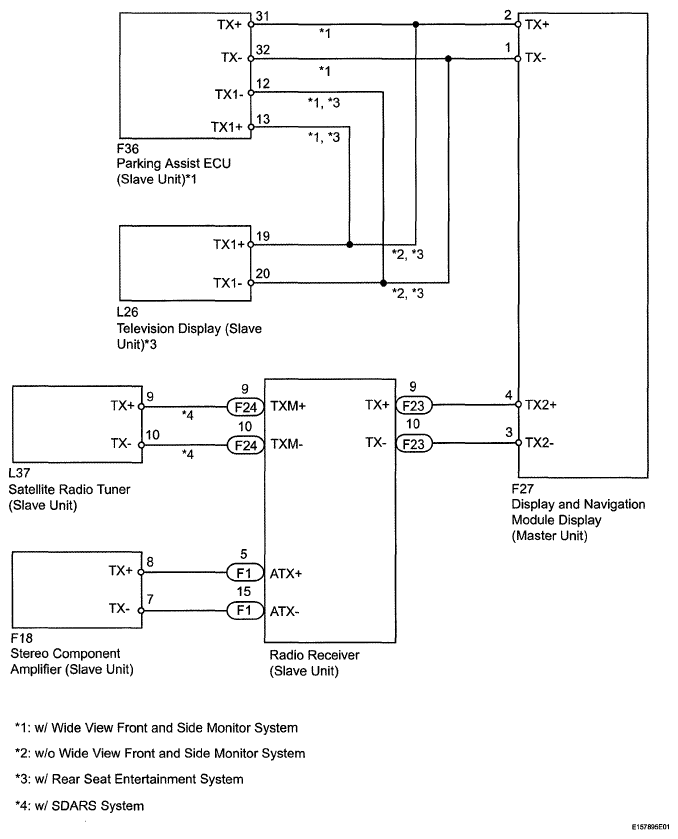

Fig 1: Display And Navigation Assembly Communication Error - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
