Back Door Lock: Components

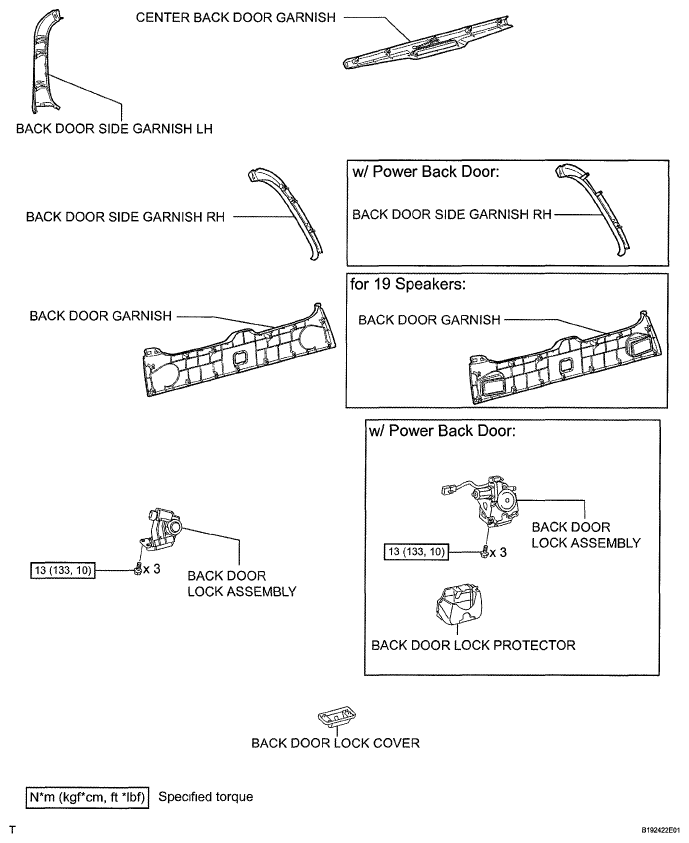

Fig 1: Identifying Back Door Lock Replacement Components And Torque Specifications
G05765362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
