Door Control Receiver: Components

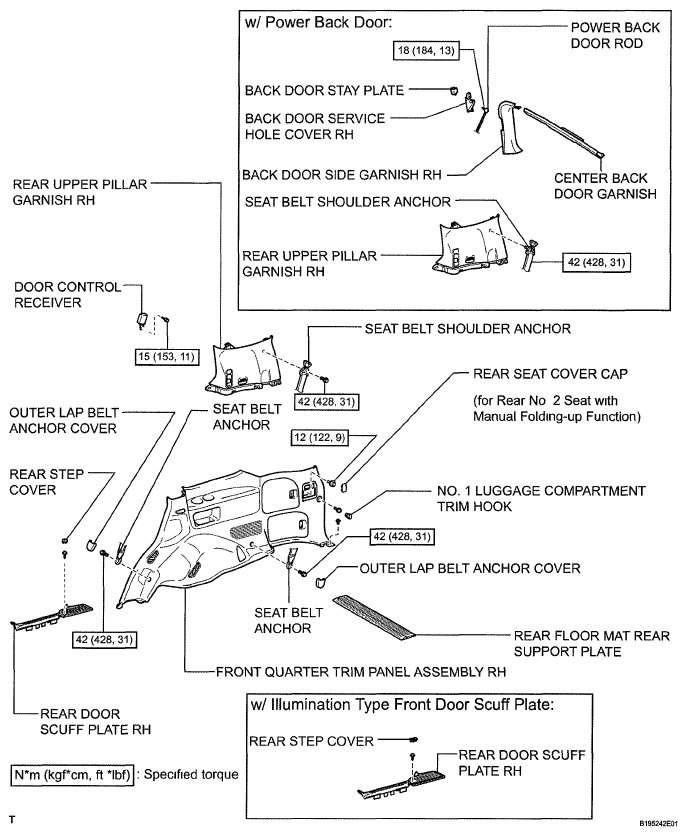

Fig 1: Identifying Door Control Receiver Replacement Components And Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
