Roof Headlining: Components

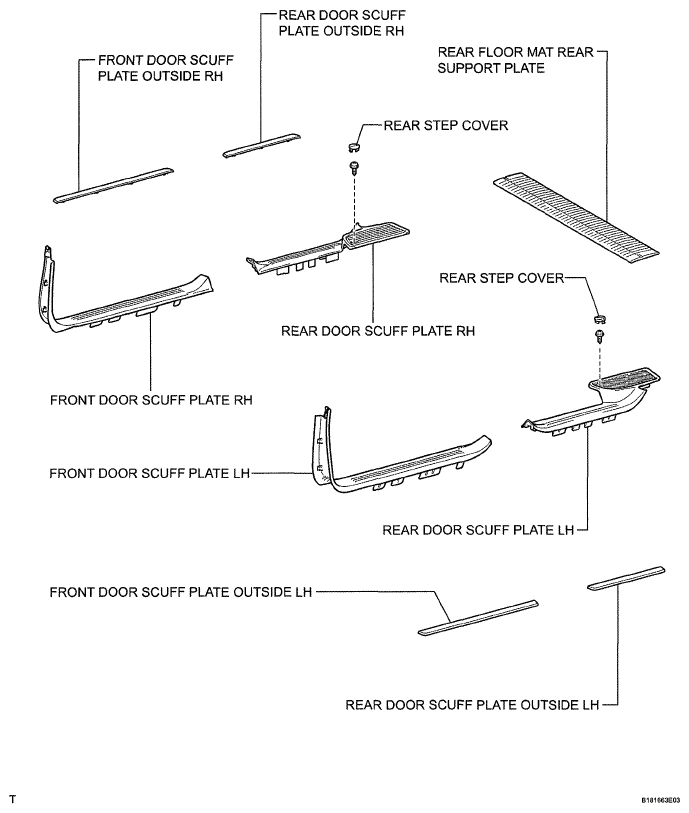

Fig 1: Identifying Roof Headlining Replacement Components (1 Of 23)

G05767172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

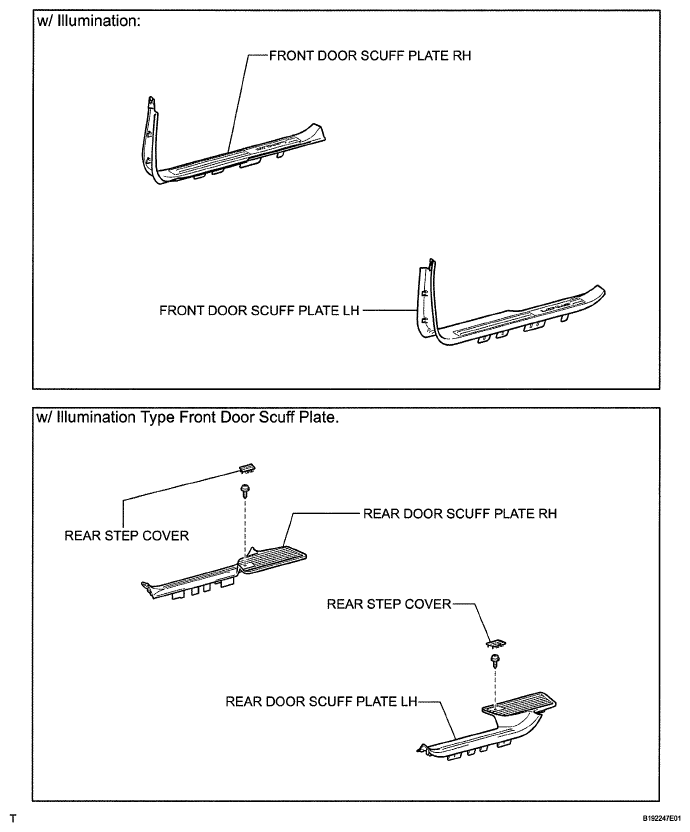

Fig 2: Identifying Roof Headlining Replacement Components (2 Of 23)

G05767173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

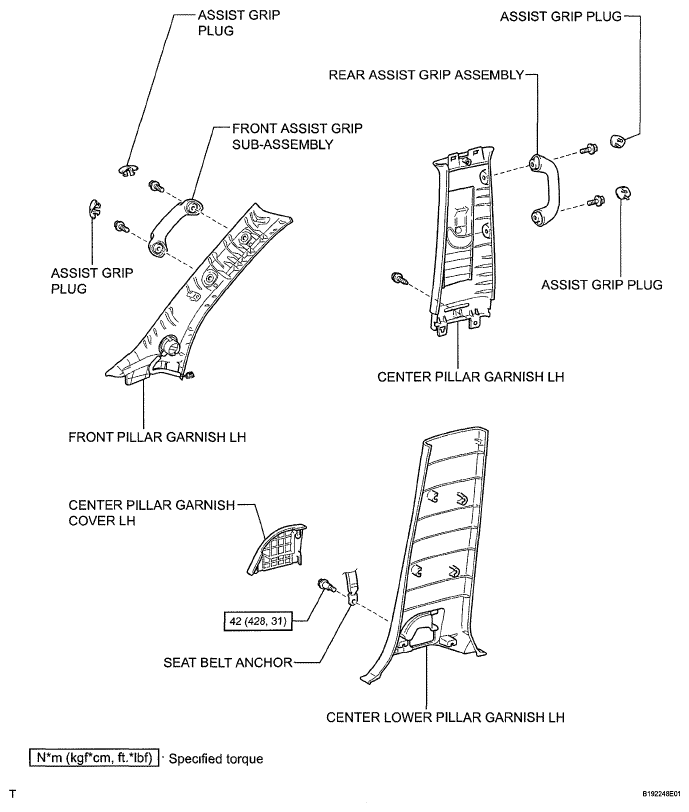

Fig 3: Identifying Roof Headlining Replacement Components With Torque Specifications (3 Of 23)

G05767174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

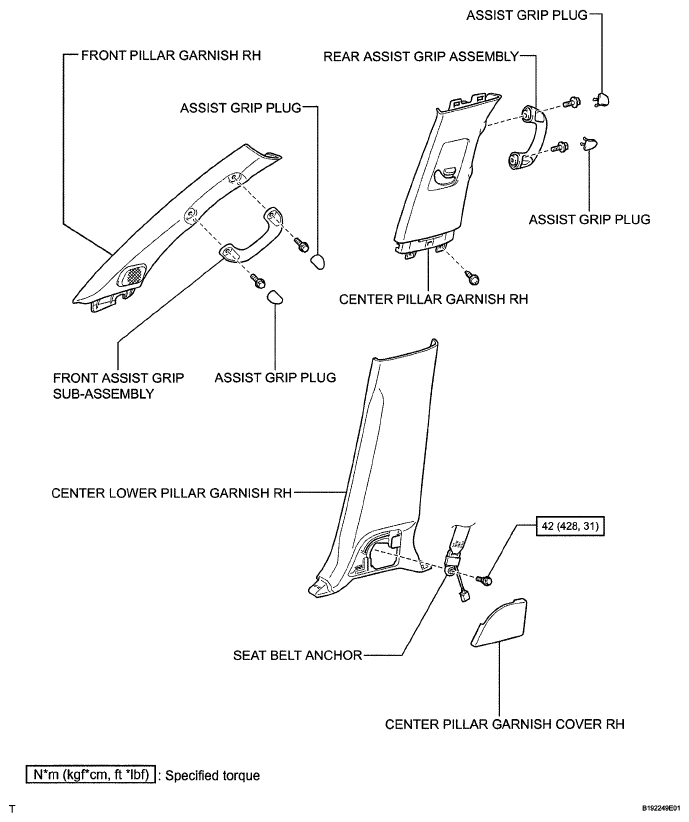

Fig 4: Identifying Roof Headlining Replacement Components With Torque Specifications (4 Of 23)

G05767175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

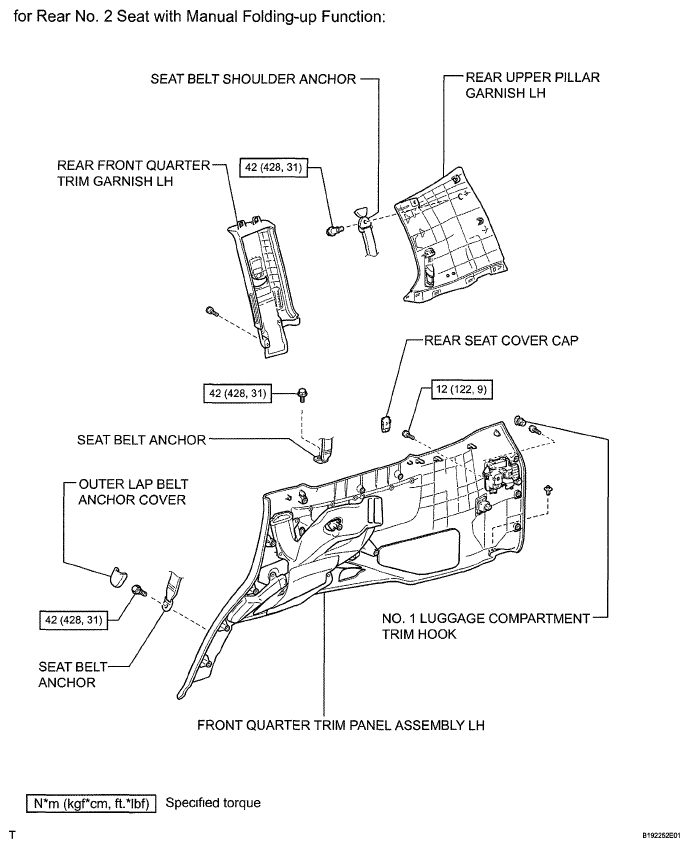

Fig 5: Identifying Roof Headlining Replacement Components With Torque Specifications (5 Of 23)

G05767176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

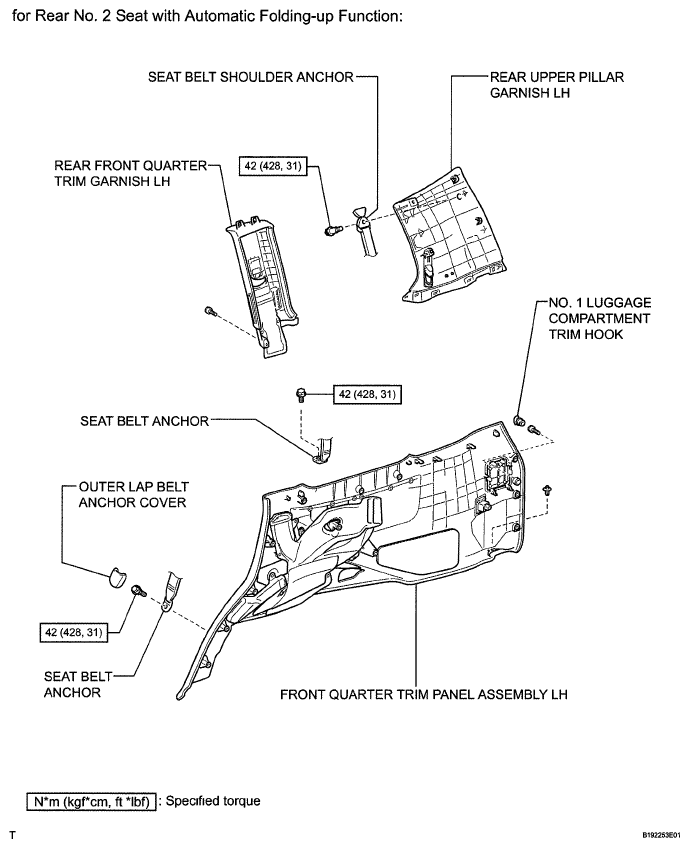

Fig 6: Identifying Roof Headlining Replacement Components With Torque Specifications (6 Of 23)

G05767177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

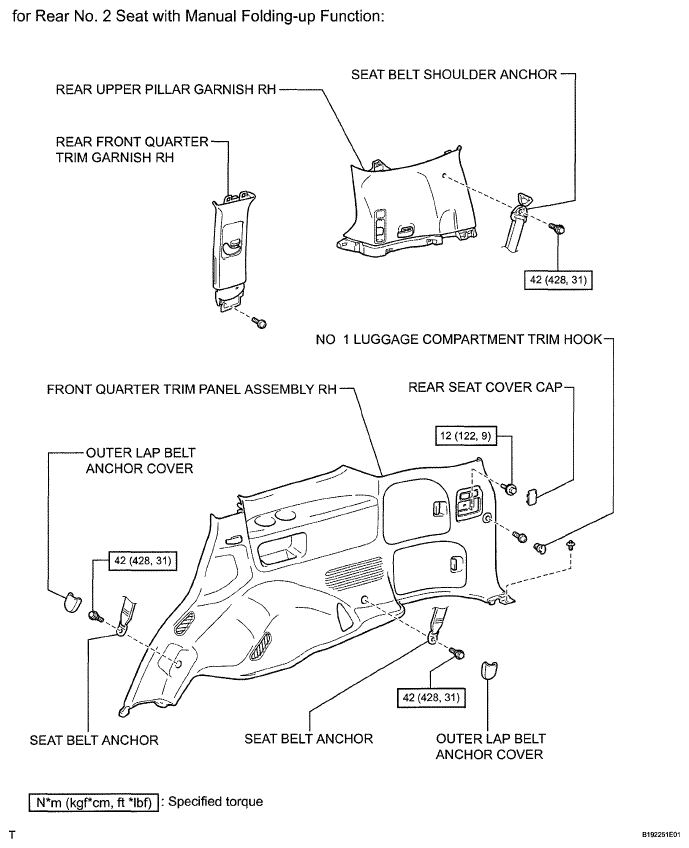

Fig 7: Identifying Roof Headlining Replacement Components With Torque Specifications (7 Of 23)

G05767178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

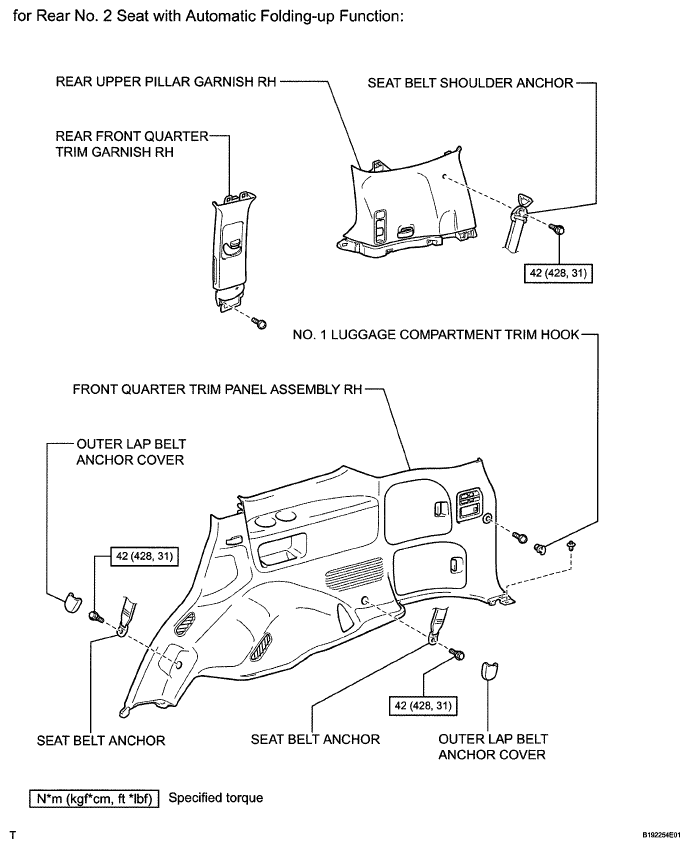

Fig 8: Identifying Roof Headlining Replacement Components With Torque Specifications (8 Of 23)

G05767179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

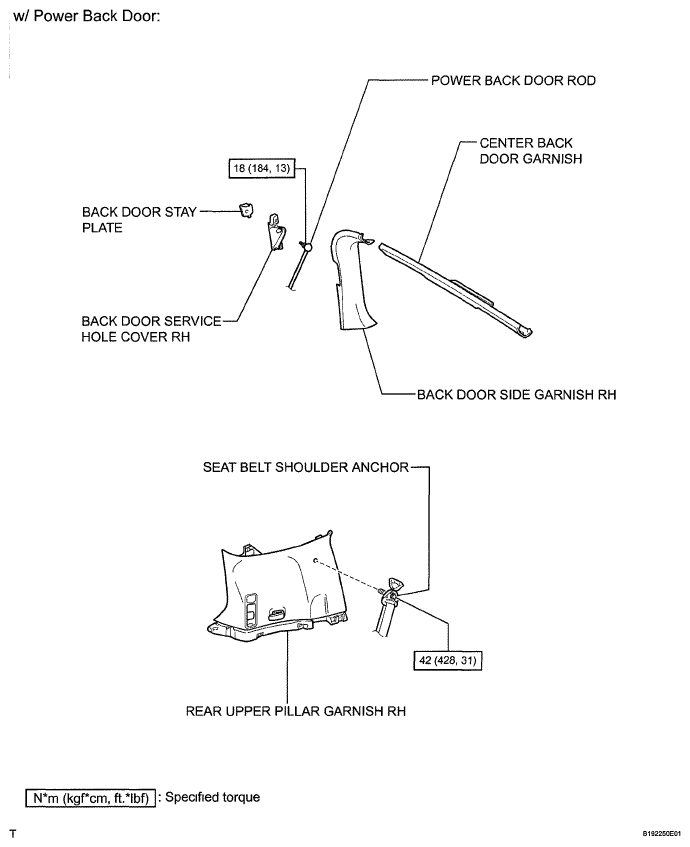

Fig 9: Identifying Roof Headlining Replacement Components With Torque Specifications (9 Of 23)

G05767180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

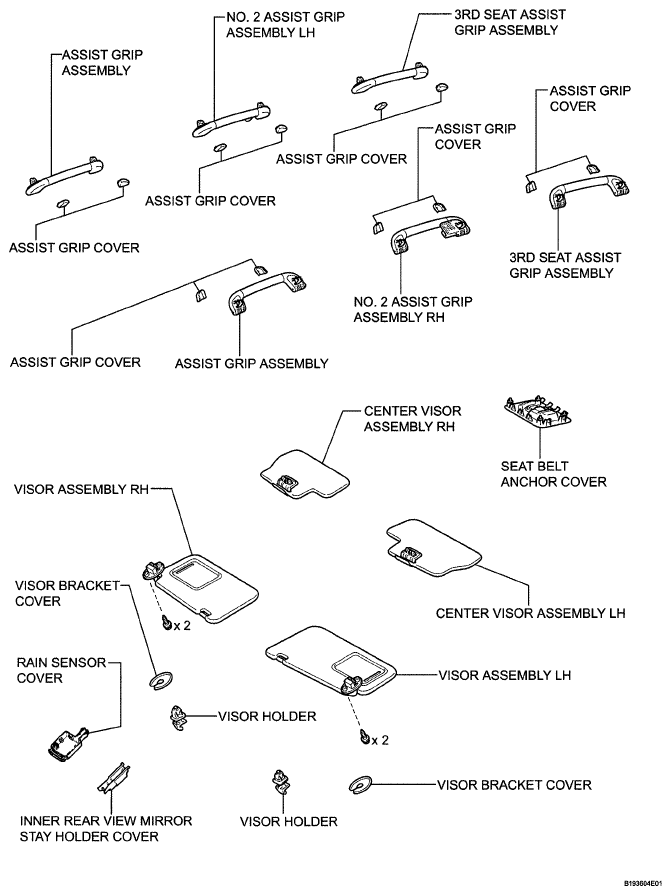

Fig 10: Identifying Roof Headlining Replacement Components (10 Of 23)

G05767181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

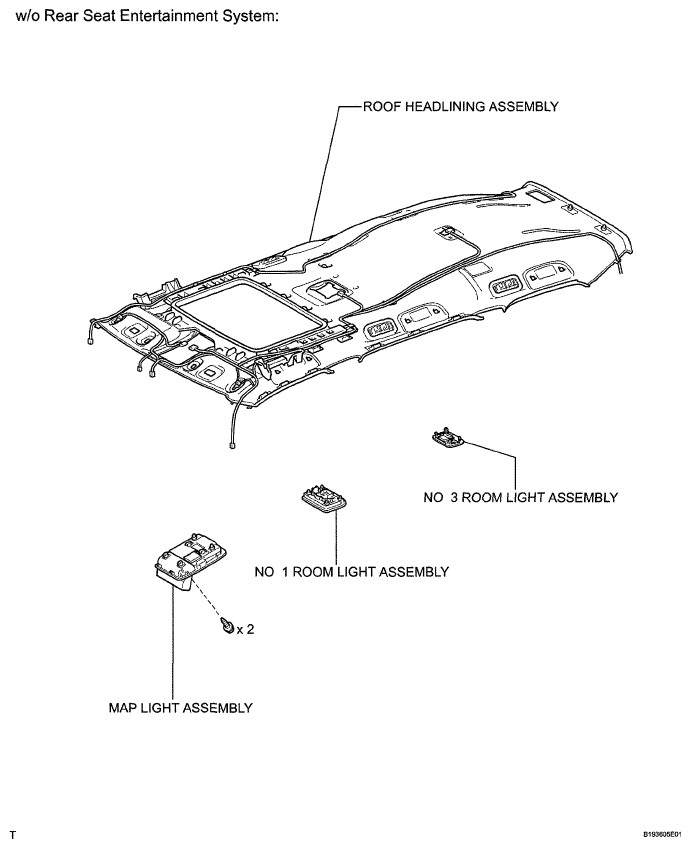

Fig 11: Identifying Roof Headlining Replacement Components (11 Of 23)

G05767182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

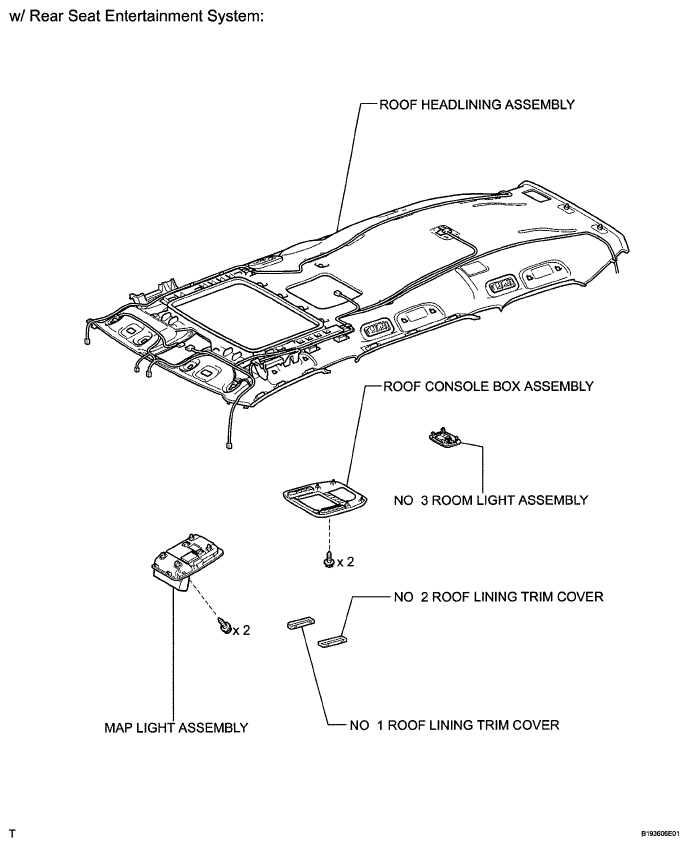

Fig 12: Identifying Roof Headlining Replacement Components (12 Of 23)

G05767183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

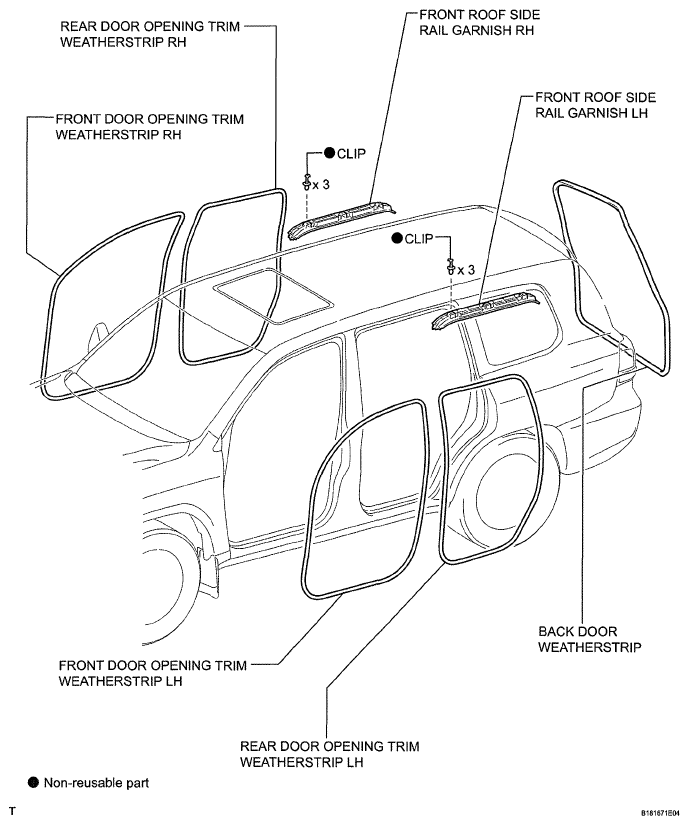

Fig 13: Identifying Roof Headlining Replacement Components (13 Of 23)

G05767184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

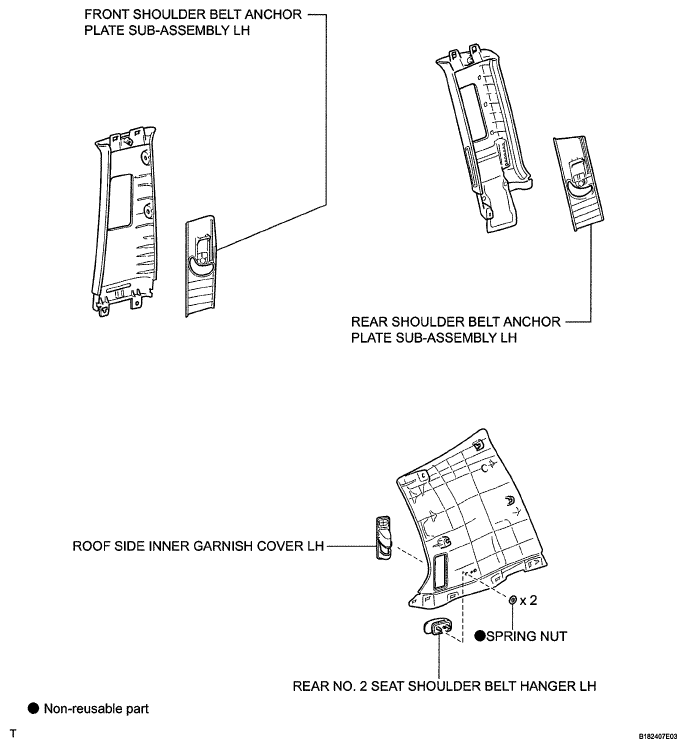

Fig 14: Identifying Roof Headlining Replacement Components (14 Of 23)

G05767185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

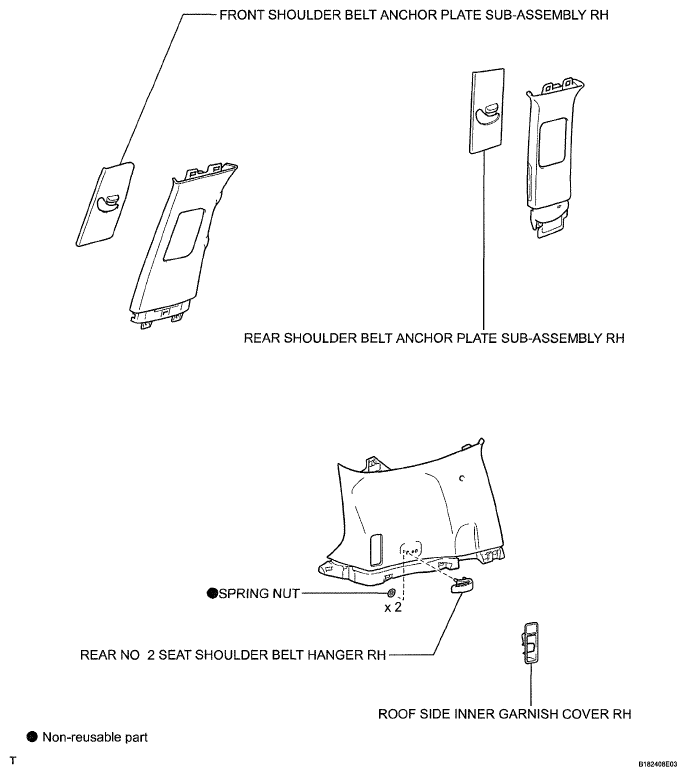

Fig 15: Identifying Roof Headlining Replacement Components (15 Of 23)

G05767186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

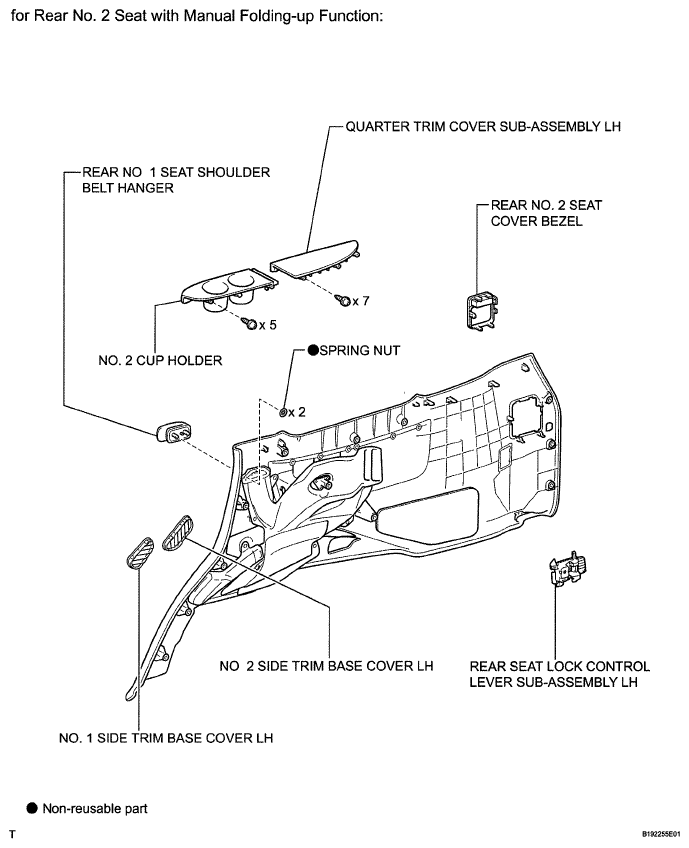

Fig 16: Identifying Roof Headlining Replacement Components (16 Of 23)

G05767187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

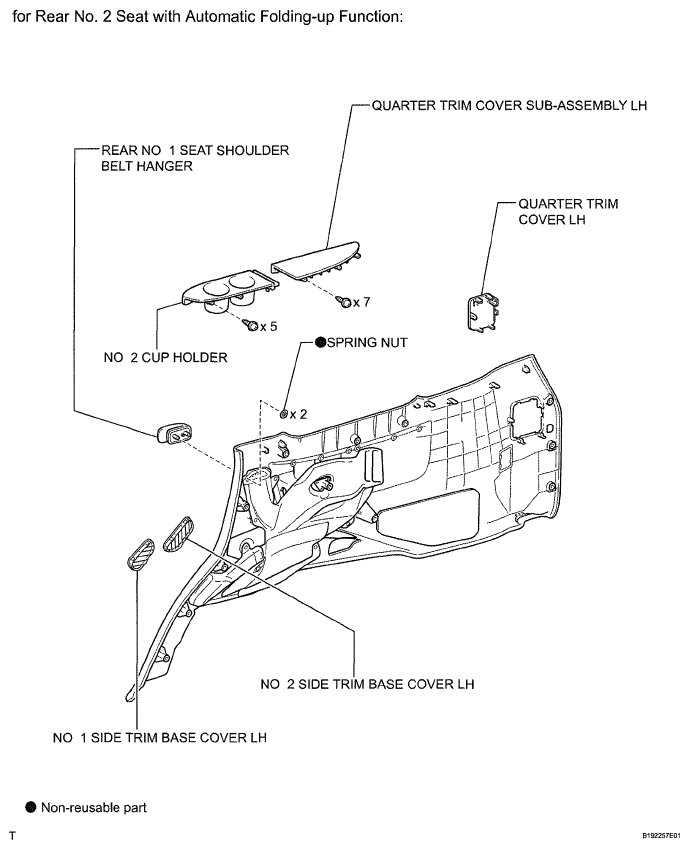

Fig 17: Identifying Roof Headlining Replacement Components (17 Of 23)

G05767188

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

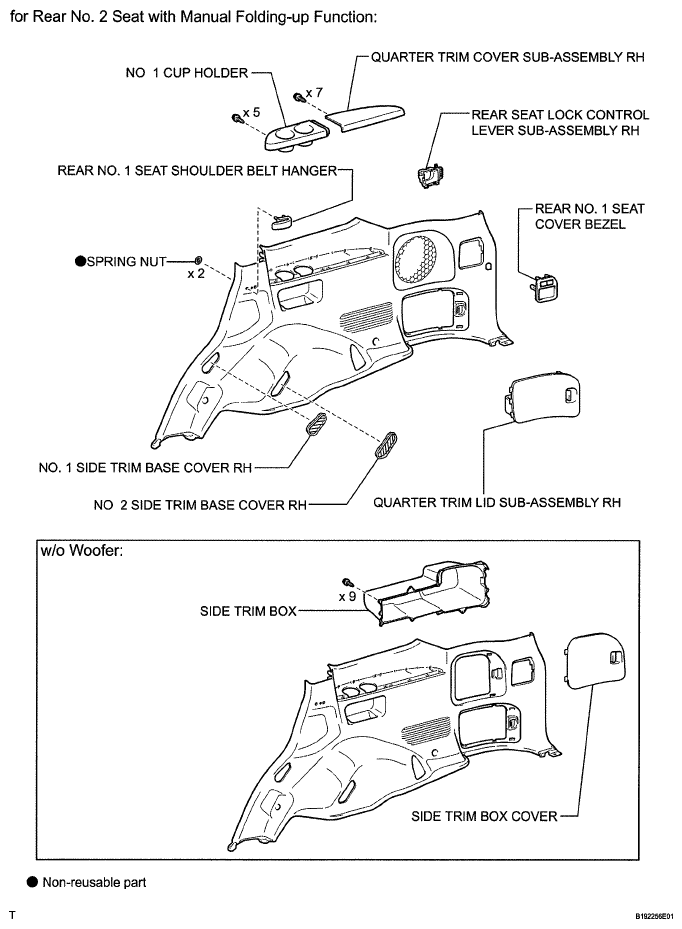

Fig 18: Identifying Roof Headlining Replacement Components (18 Of 23)

G05767189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Identifying Roof Headlining Replacement Components (19 Of 23)

G05767190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Identifying Roof Headlining Replacement Components (20 Of 23)

G05767191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

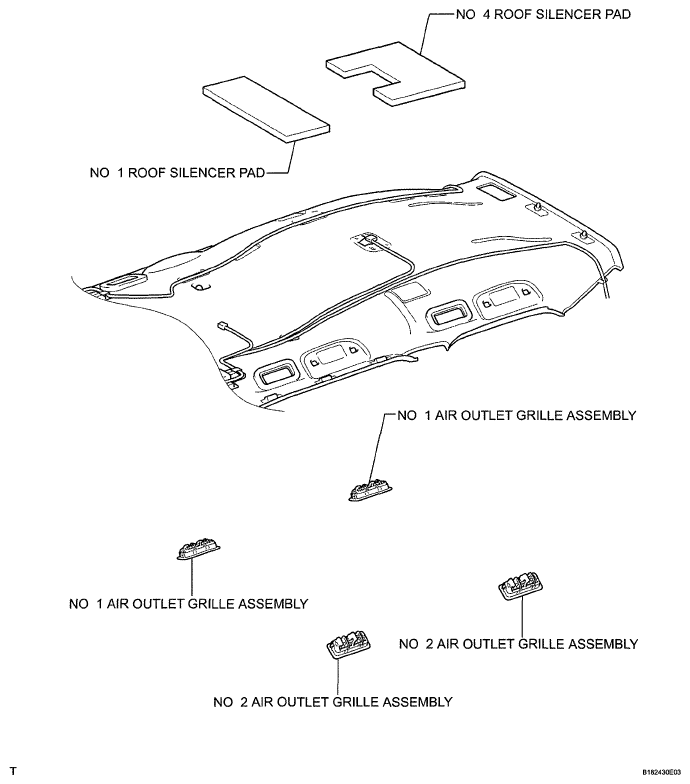

Fig 21: Identifying Roof Headlining Replacement Components (21 Of 23)

G05767192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

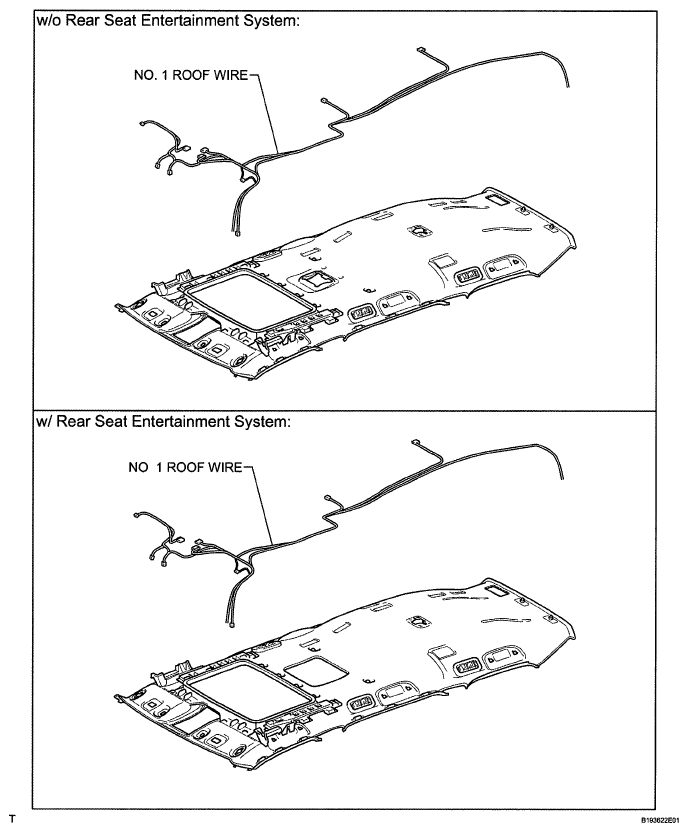

Fig 22: Identifying Roof Headlining Replacement Components (22 Of 23)

G05767193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

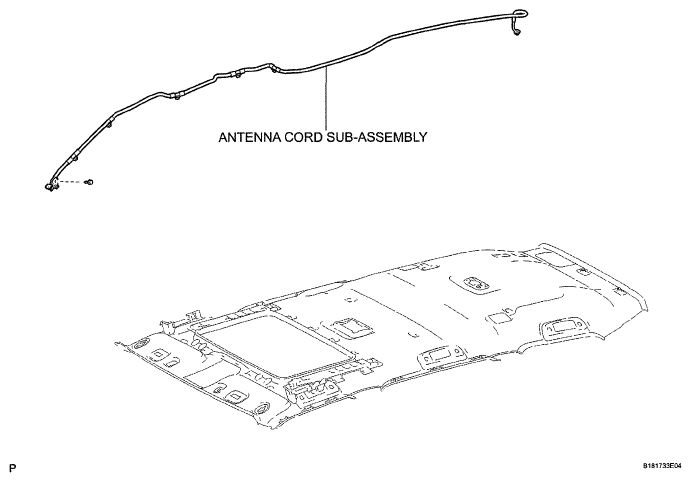

Fig 23: Identifying Roof Headlining Replacement Components (23 Of 23)

G05767194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
