Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

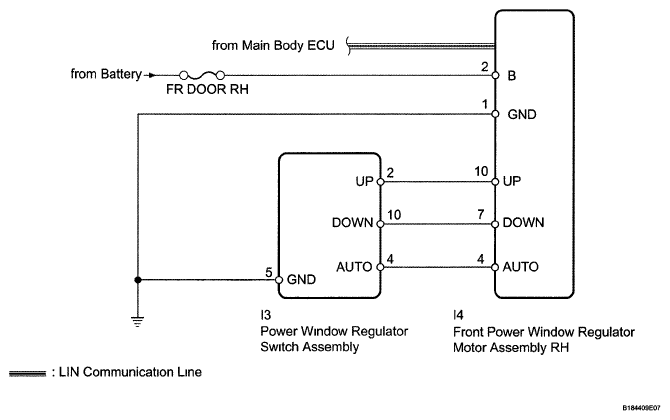

Fig 1: Power Window Regulator Switch - Wiring Diagram
G05767434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
