Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

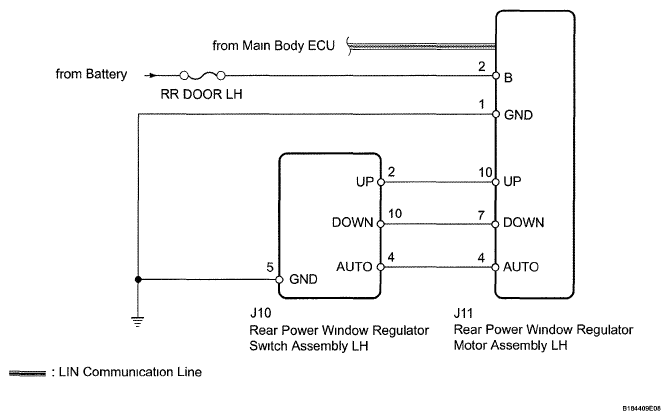

Fig 1: Rear Power Window Regulator Switch Assembly LH - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
