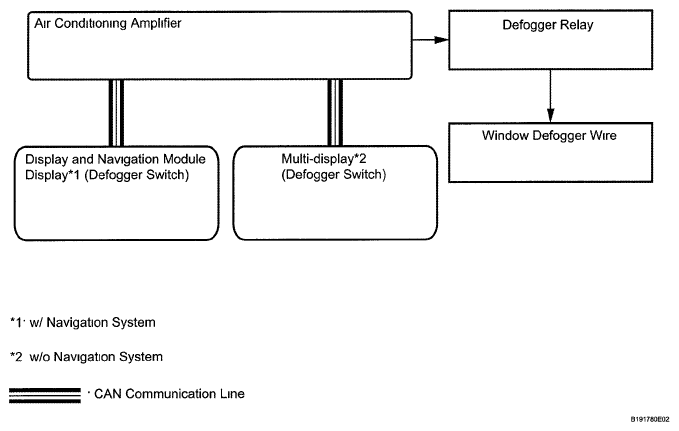

System Diagram
Communication Table
COMMUNICATION REFERENCE
| Transmitter | Receiver | Signal | Line | ||||
|---|---|---|---|---|---|---|---|
| Display and navigation module display(1) | Air conditioning amplifier | Rear window defogger switch signal | CAN | ||||
| Multi-display(2) | Air conditioning amplifier | Rear window defogger switch signal | CAN | ||||
|
|||||||
