Brake Control / Dynamic Control Systems
›
Vehicle Stability Control System
›
ABS Warning Light Remains ON
›
Wiring Diagram
ABS Warning Light Remains ON: Wiring Diagram

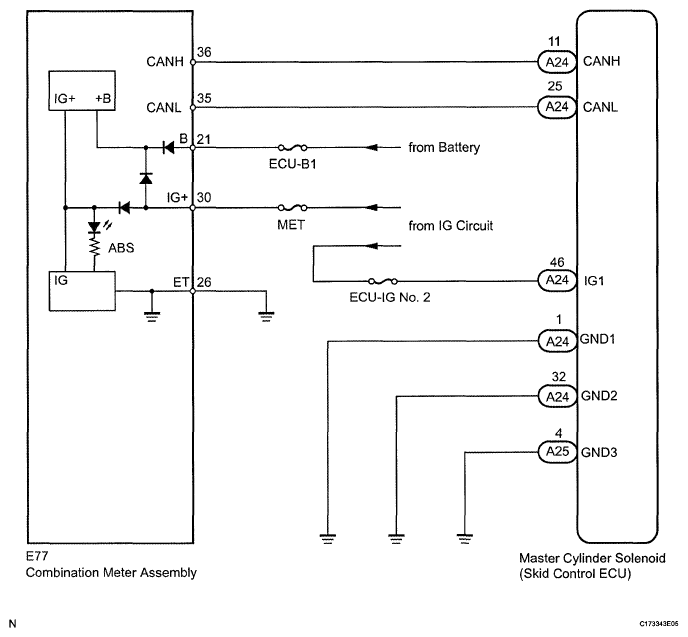

Fig 1: ABS Warning Light Remains ON - Wiring Diagram
