Brake Control / Dynamic Control Systems
›
Vehicle Stability Control System
›
Brake Warning Light Remains ON
›
Wiring Diagram
Brake Warning Light Remains ON: Wiring Diagram

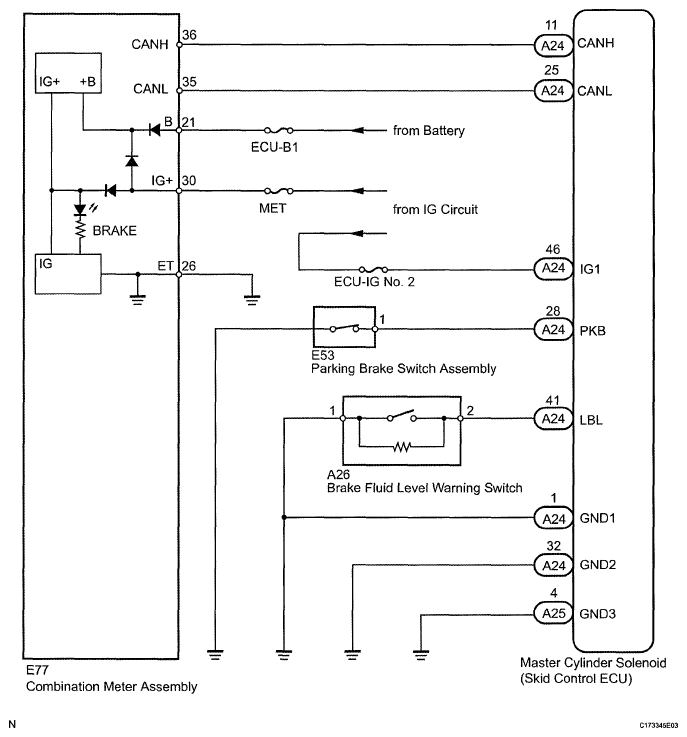

Fig 1: Brake Fluid Level Warning Switch - Wiring Diagram
