Vehicle Stability Control System
›
VSC OFF Indicator Light Remains ON
›
Wiring Diagram
VSC OFF Indicator Light Remains ON: Wiring Diagram

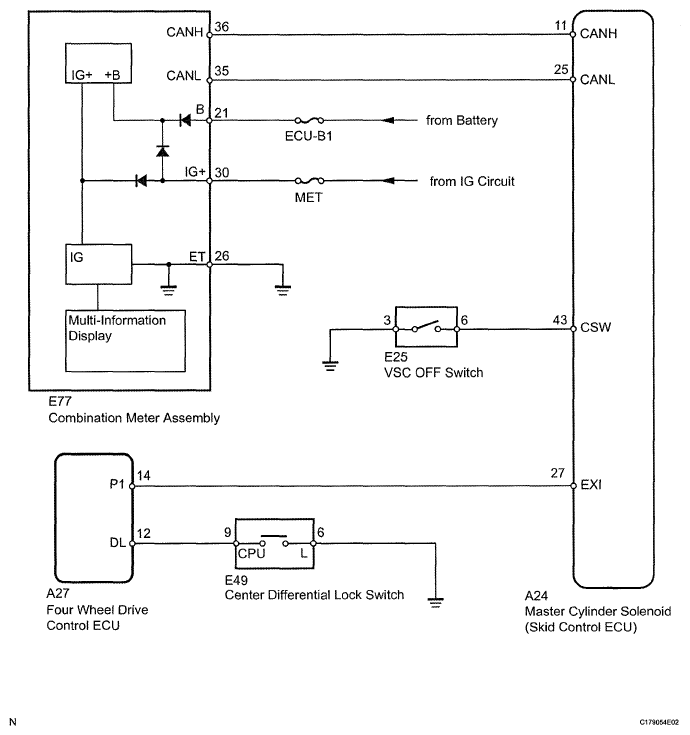

Fig 1: Center Differential Lock Switch - Wiring Diagram
