Ground Point: Notes

Fig 1: Ground Point - Circuit Diagram (1 Of 11)

G07597058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Ground Point - Circuit Diagram (2 Of 11)

G07597059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Ground Point - Circuit Diagram (3 Of 11)

G07597060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Ground Point - Circuit Diagram (4 Of 11)

G07597061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Ground Point - Circuit Diagram (5 Of 11)

G07597062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Ground Point - Circuit Diagram (6 Of 11)

G07597063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Ground Point - Circuit Diagram (7 Of 11)

G07597064

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

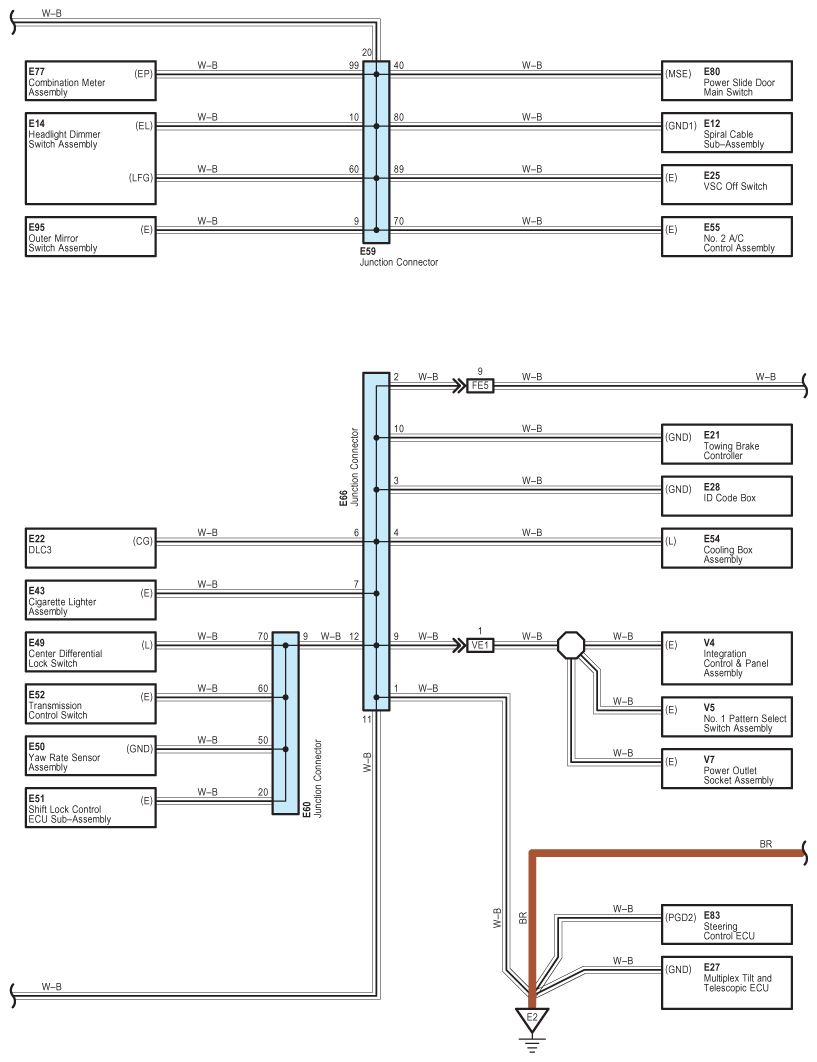

Fig 8: Ground Point - Circuit Diagram (8 Of 11)

G07597065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

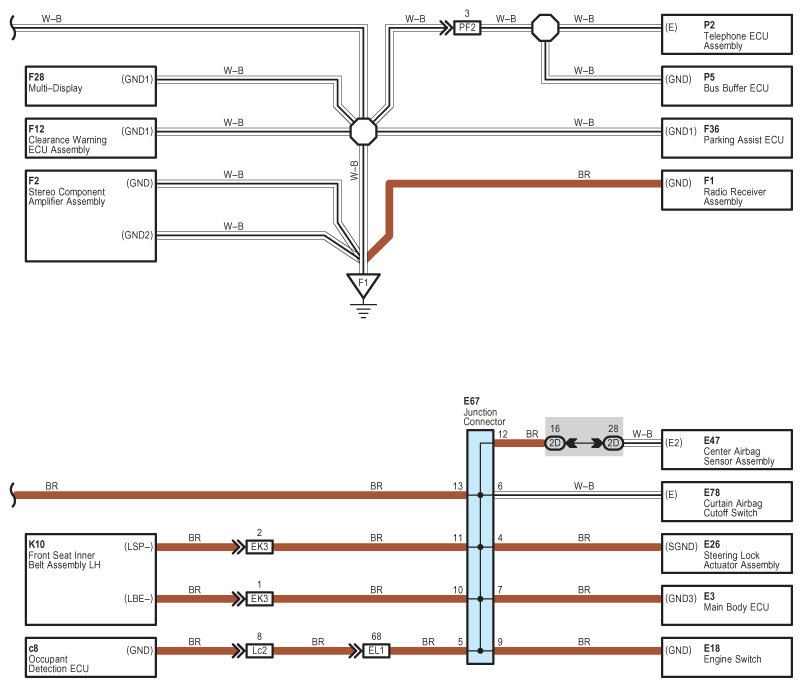

Fig 9: Ground Point - Circuit Diagram (9 Of 11)

G07597066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

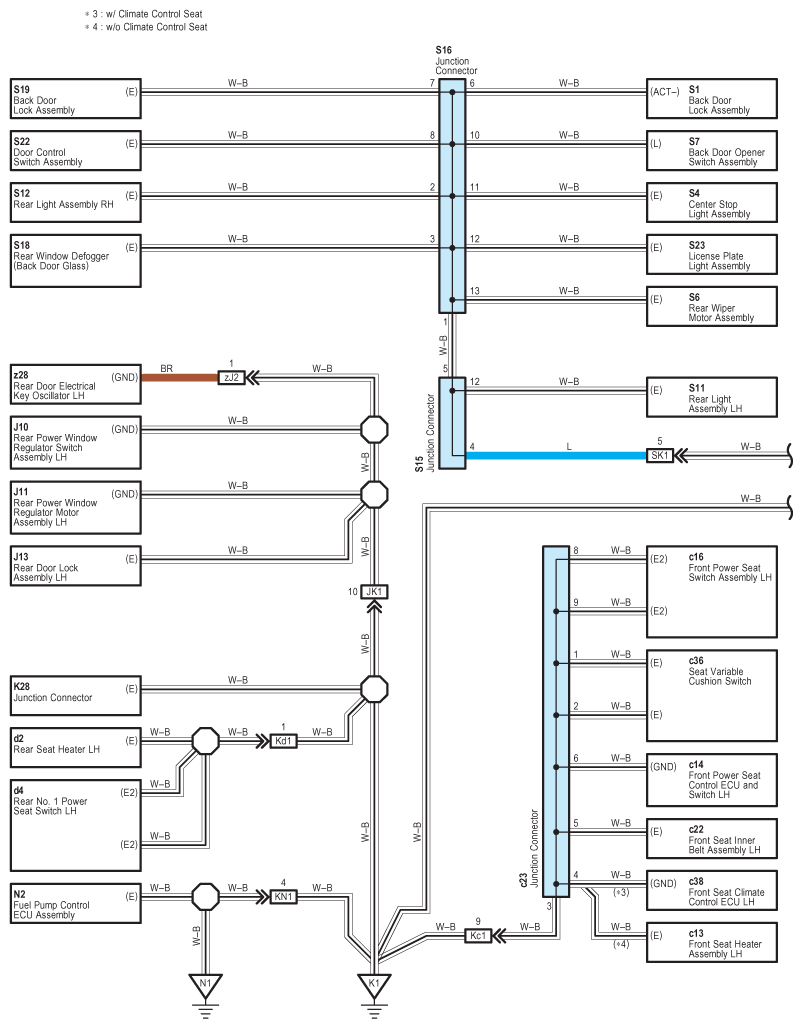

Fig 10: Ground Point - Circuit Diagram (10 Of 11)

G07597067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

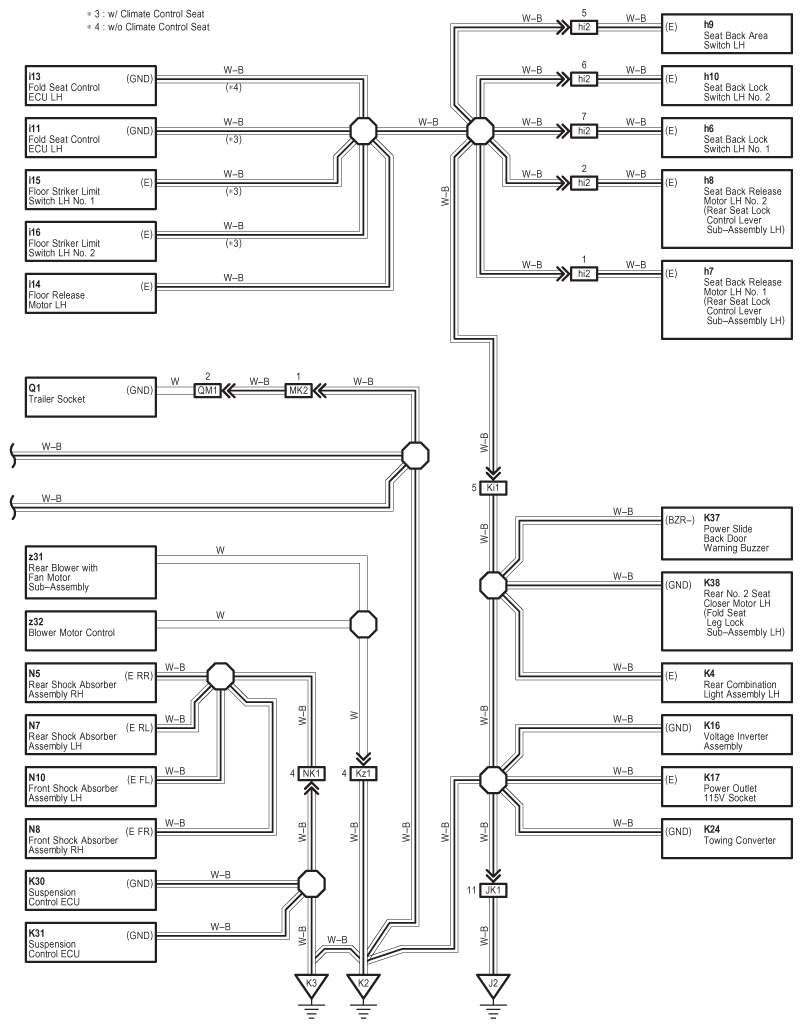

Fig 11: Ground Point - Circuit Diagram (11 Of 11)

G07597068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
