Condenser Fan: Notes

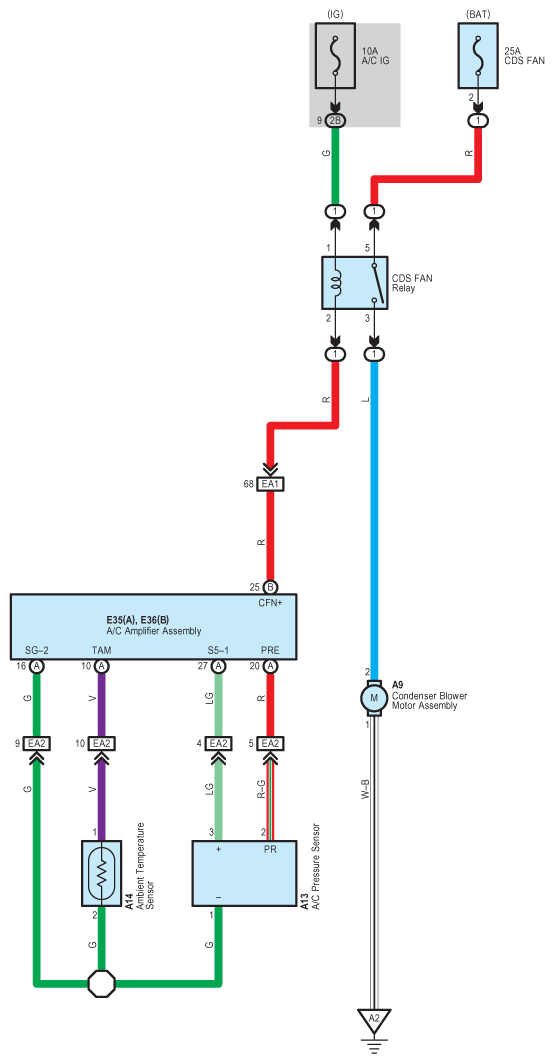

Fig 1: Condenser Fan - Circuit Diagram

G07597044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
