Front Window Deicer: Notes

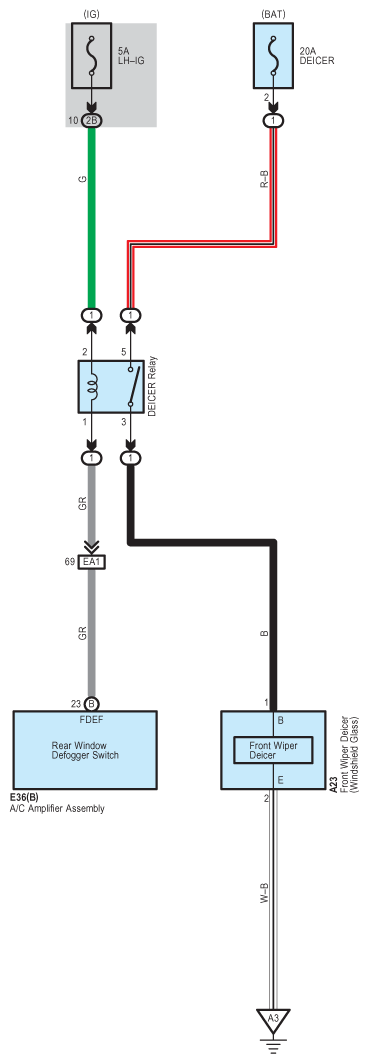

Fig 1: Front Window Deicer - Circuit Diagram
G07596988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
