Slide Roof: Notes

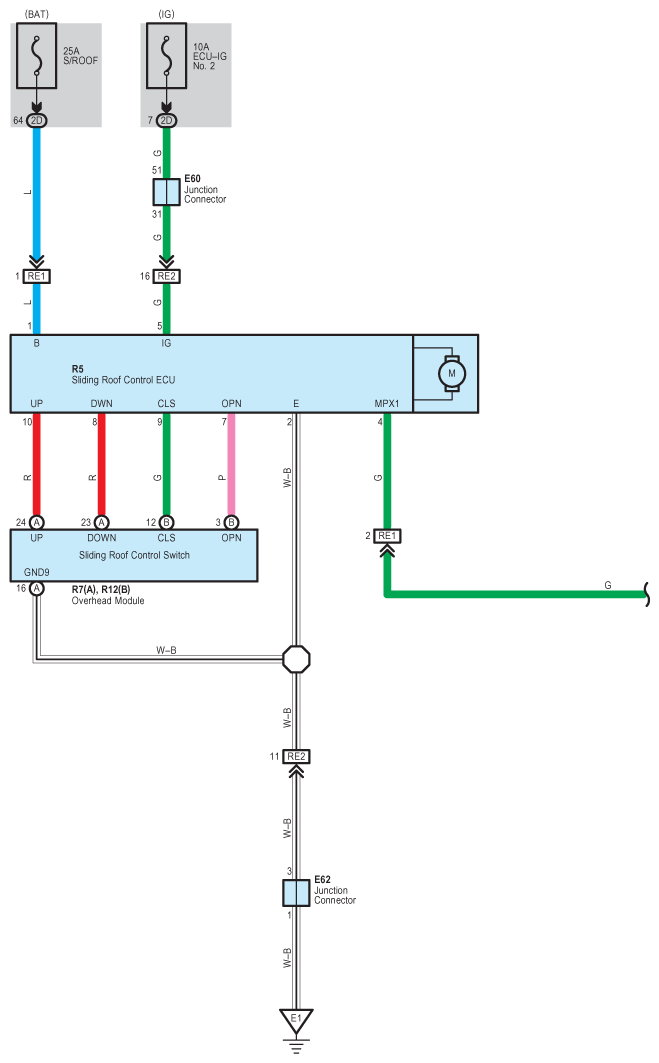

Fig 1: Slide Roof - Circuit Diagram (1 Of 5)
G07596858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

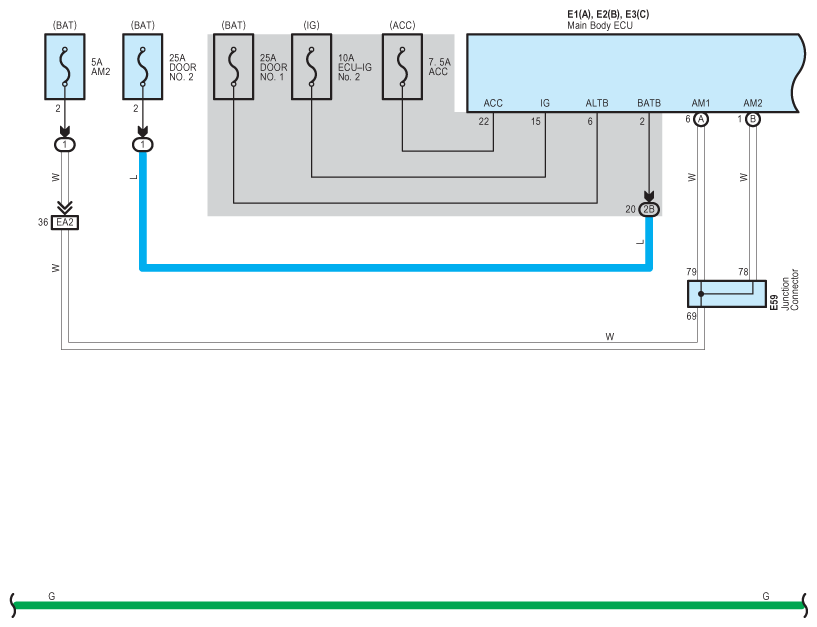

Fig 2: Slide Roof - Circuit Diagram (2 Of 5)
G07596859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

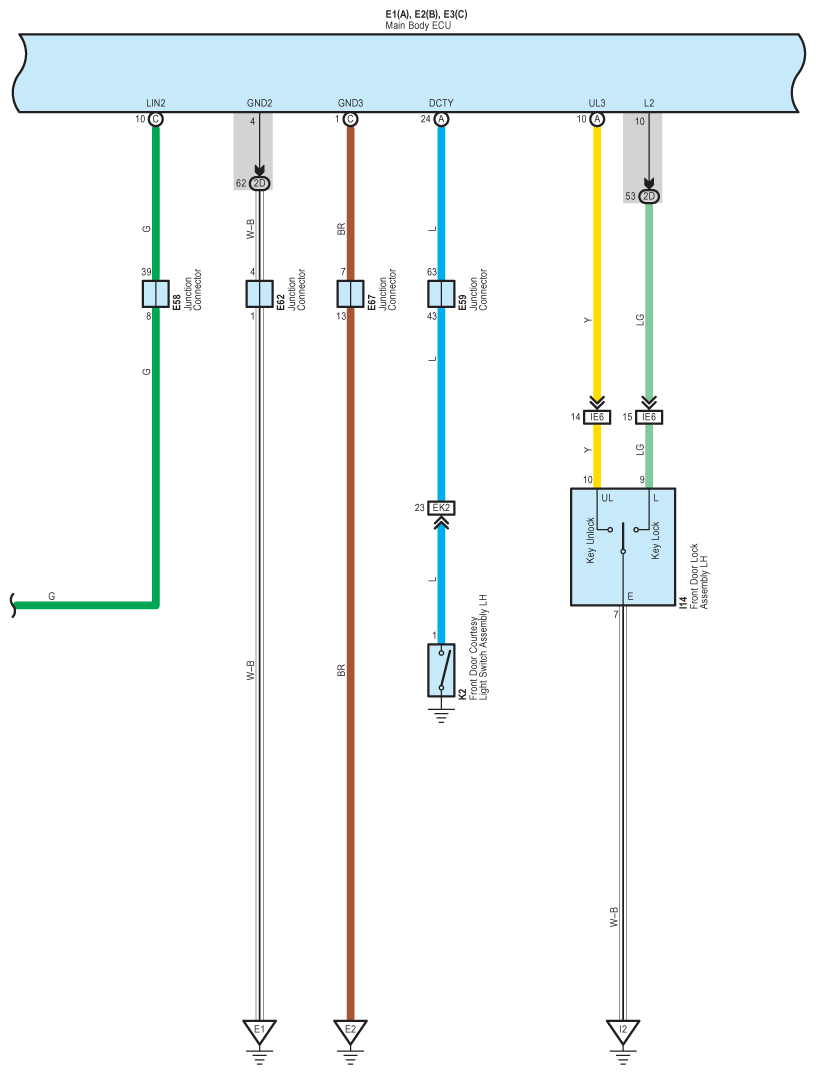

Fig 3: Slide Roof - Circuit Diagram (3 Of 5)
G07596860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

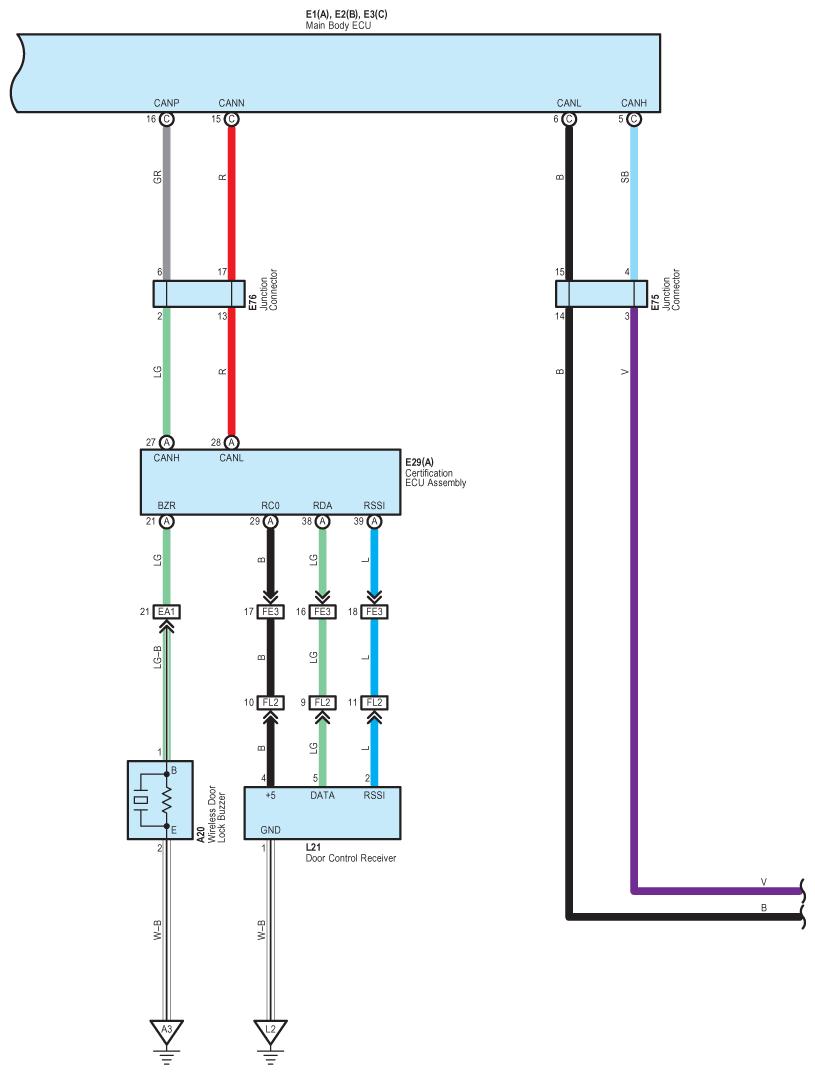

Fig 4: Slide Roof - Circuit Diagram (4 Of 5)
G07596861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

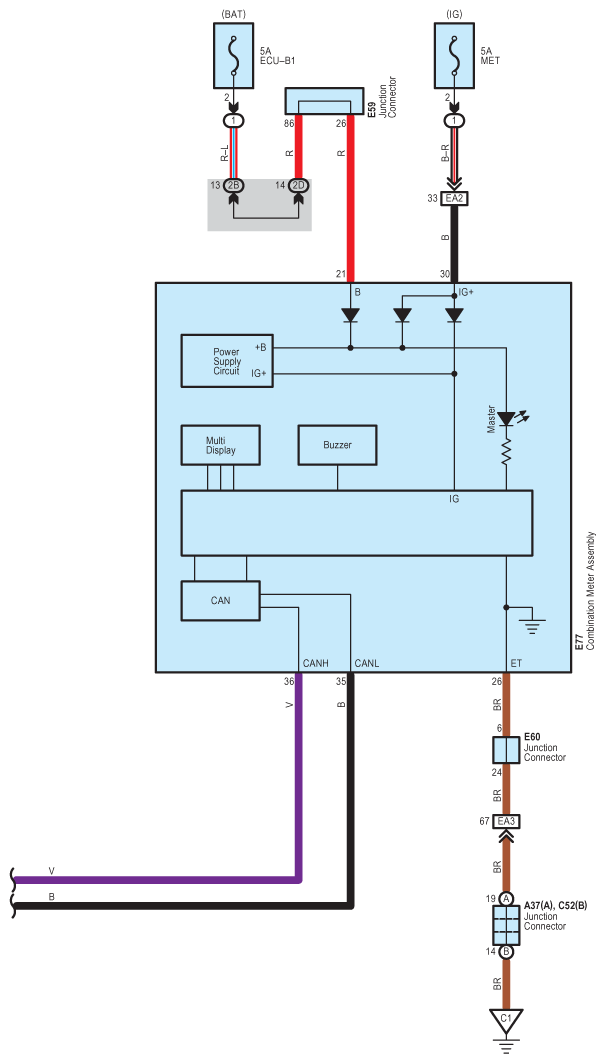

Fig 5: Slide Roof - Circuit Diagram (5 Of 5)
G07596862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
