Trailer Towing: Notes

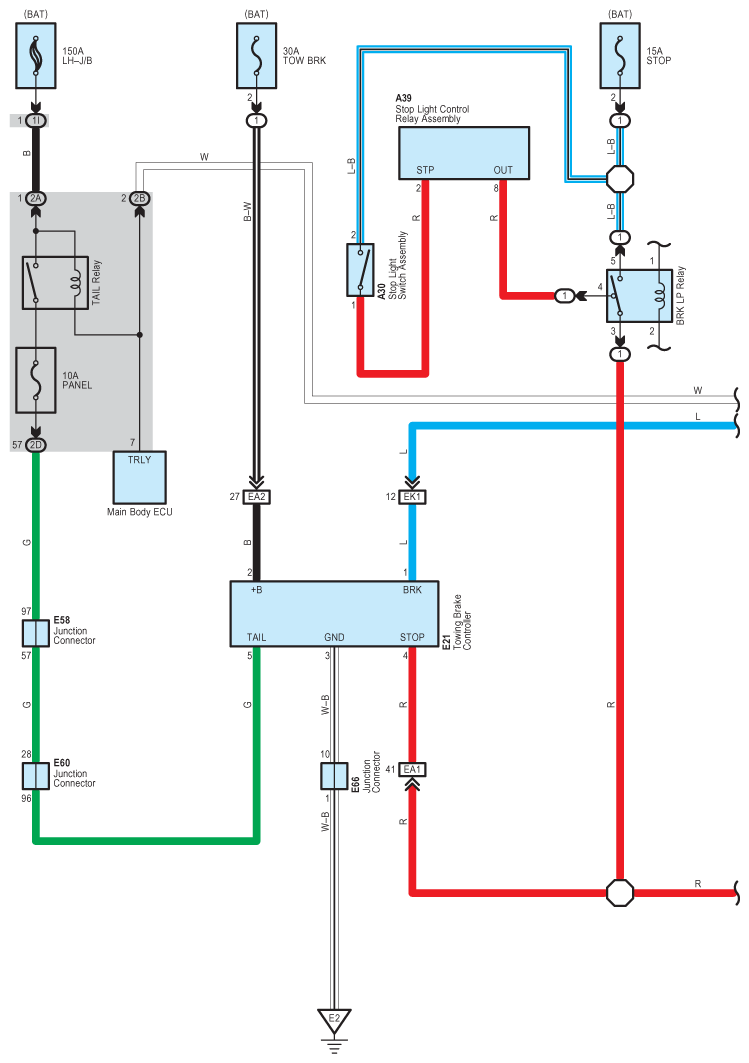

Fig 1: Trailer Towing - Circuit Diagram (1 Of 3)
G07596841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

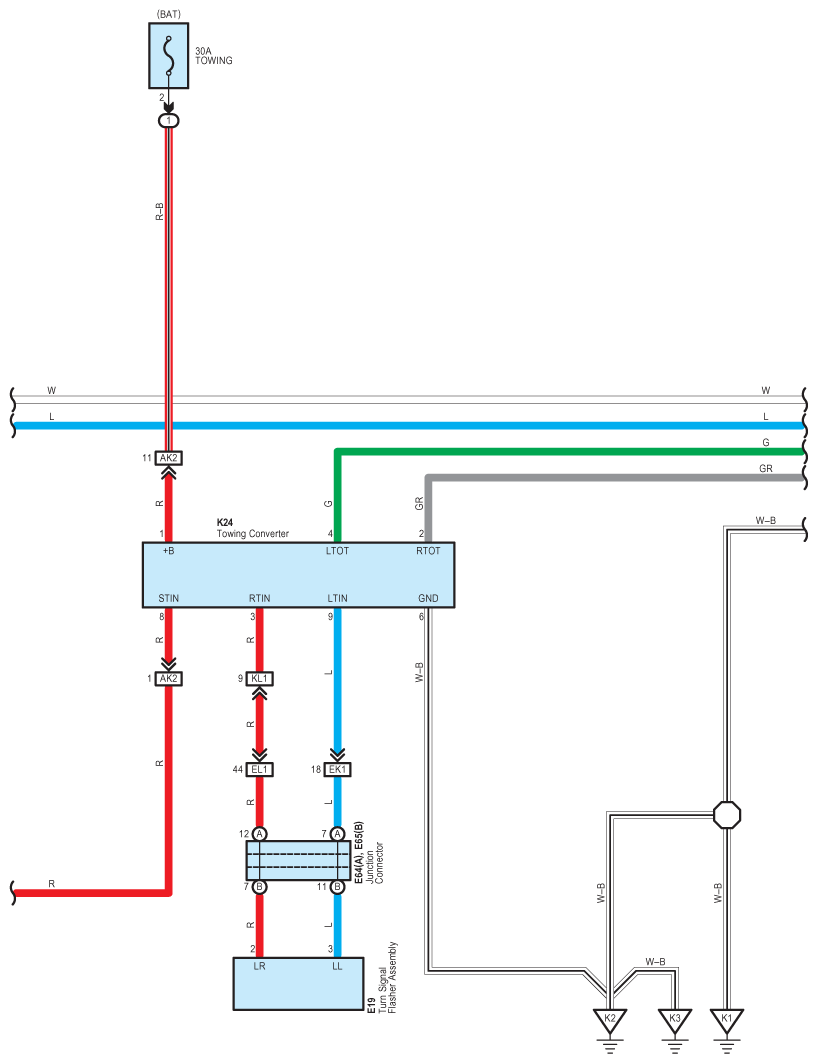

Fig 2: Trailer Towing - Circuit Diagram (2 Of 3)
G07596842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

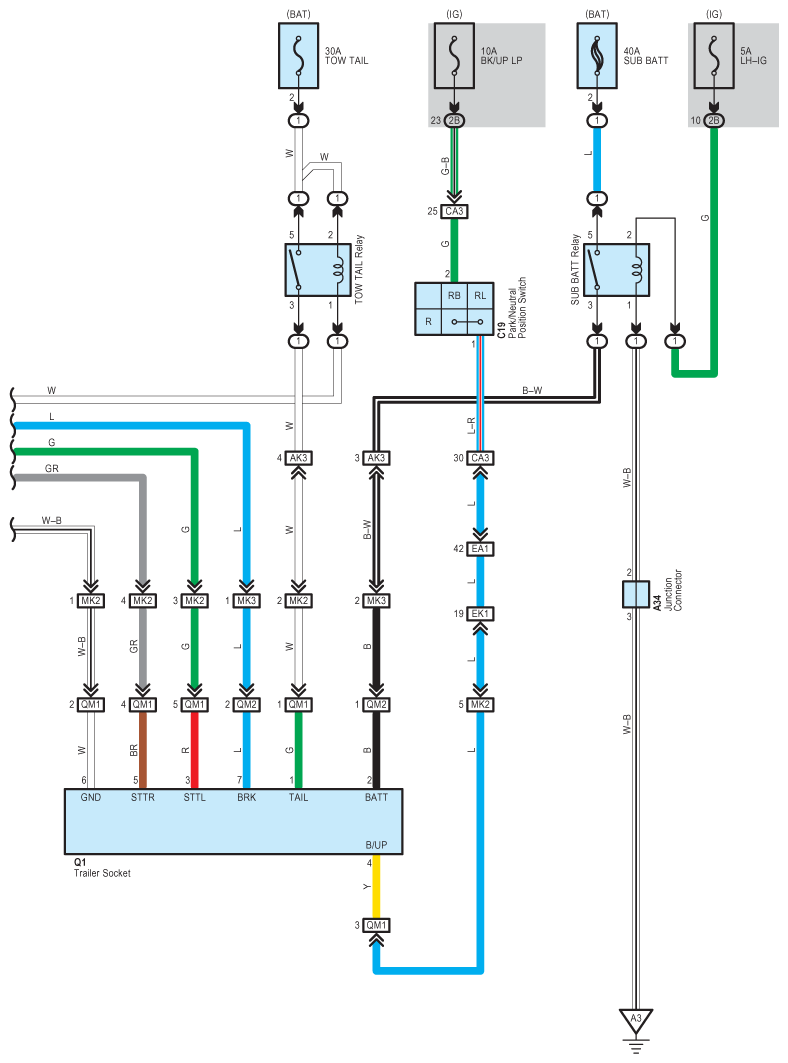

Fig 3: Trailer Towing - Circuit Diagram (3 Of 3)
G07596843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
