Meter / Gauge System: Initialization

OIL MAINTENANCE INFORMATION MODE RESET OPERATION
NOTE:
- When "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" is displayed, change the engine oil and perform this procedure.
- After the engine oil is changed, perform this procedure so that "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" does not display.
HINT.
- The oil change maintenance system displays "Oil Maintenance Reqd" or "Oil Maintenance Reqd Soon" in the multi-information display to inform the driver that it is time to change the oil based on the distance driven.
- The ODO/TRIP switch is in the light control rheostat.
1. Turn the engine switch on (IG), and use the ODO/TRIP switch to change the screen display to TRIP A.
2. Turn the engine switch off.
3. While holding in the ODO/TRIP switch, turn the engine switch on (IG).

  Fig 1: Identifying ODO/TRIP Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. After a 5 second count, reset will end.
NOTE:
- If the engine switch is turned off during the reset operation, reset mode will be canceled.
- If the ODO/TRIP switch is released during the reset operation, reset mode will be canceled.
Fig 2: Identifying ODO/TRIP Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. RESET FLOWCHART

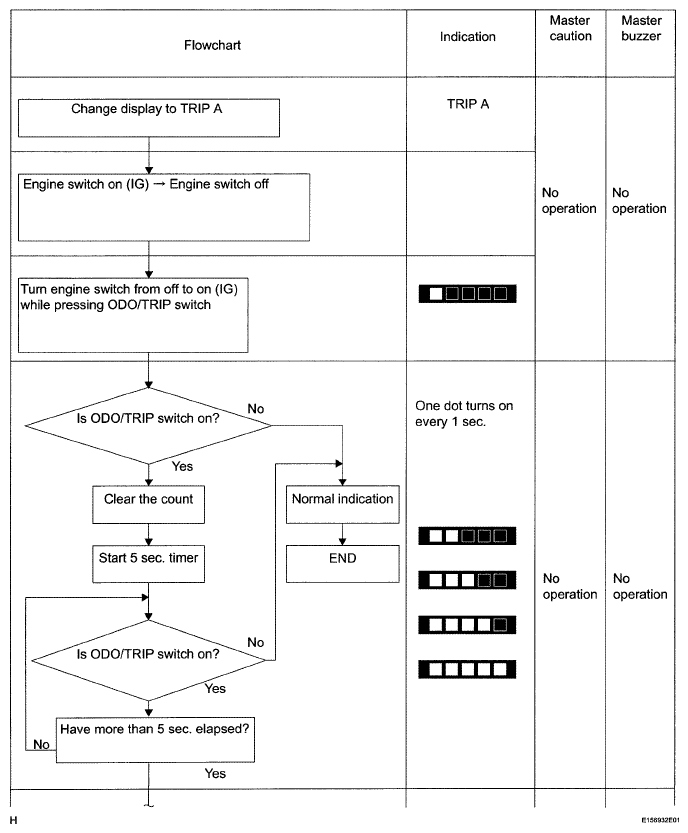

Fig 3: Master Buzzer Reset Flowchart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

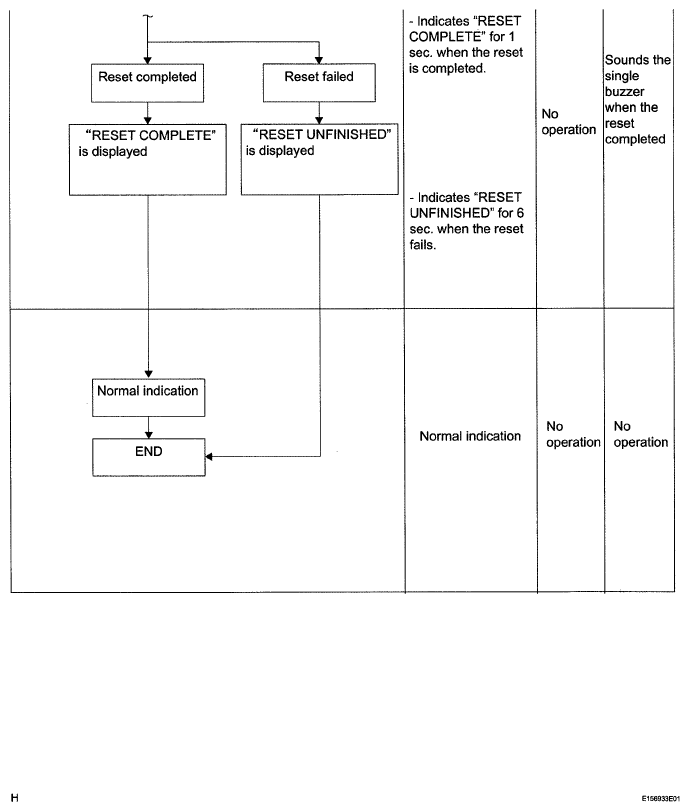

Fig 4: Master Buzzer Reset Flowchart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
