Cooling System (Mechanical): Cooling: Coolant: Replacement

  1. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  2. REMOVE ENGINE ROOM SIDE COVER RH  (See REMOVAL )
  3. REMOVE UPPER RADIATOR SUPPORT SEAL  (See REMOVAL )
  4. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH  (See REMOVAL )
  5. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH  (See REMOVAL )
  6. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY  (See REMOVAL )
  7. DRAIN ENGINE COOLANT
    CAUTION: Do not remove the radiator cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

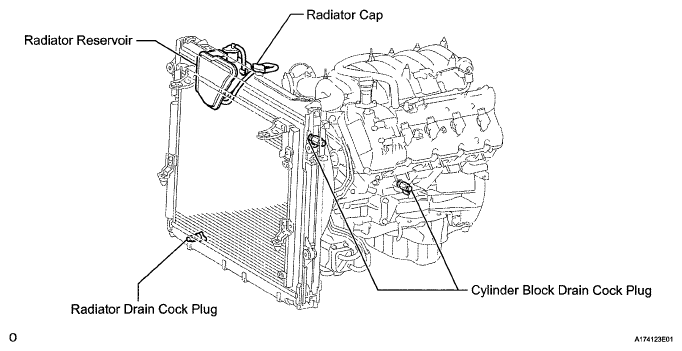

    Fig 1: Identifying Radiator Cap, Radiator Reservoir And Radiator Drain Cock Plug
    G05638083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Loosen the radiator drain cock plug.

      HINT:

      Collect the coolant in a container and dispose of it according to the regulations in your area.

    2. Remove the radiator cap. Then drain the coolant from the radiator.
    3. Loosen the 2 cylinder block drain cock plugs. Then drain the coolant from the engine.
    4. Tighten the 2 cylinder block drain cock plugs.

      Torque: 13 N*m (130 kgf*cm, 10 ft.*lbf)

    5. Tighten the radiator drain cock plug by hand.
  8. ADD ENGINE COOLANT
    1. Add engine coolant.

      Standard Capacity:

      16.7 liters (17.6 US qts, 14.7 lmp. qts)

      NOTE: Do not substitute plain water for engine coolant.

      HINT:

      TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids).

    2. Slowly pour coolant into the radiator reservoir until it reaches the F line.
    3. Install the reservoir cap.
    4. Press the No. 1 and No. 2 radiator hoses several times by hand, and then check the coolant level. If the coolant level is low, add coolant.
    5. Install the radiator cap.
    6. Start the engine and warm it up until the thermostat opens.
      NOTE: Switch off the A/C.
      Fig 2: Identifying Engine Coolant Level
      G05638081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Maintain the engine speed at 2000 to 2500 RPM.
      NOTE:
      • Make sure that the radiator reservoir still has some coolant in it.
      • Pay attention to the needle of the water temperature meter. Make sure that the needle does not show an abnormally high temperature.
      • If there is not enough coolant, the engine may burn out or overheat.
      • Immediately after starting the engine, if the radiator reservoir does not have any coolant, perform the following: 1) stop the engine, 2) wait until the coolant has cooled down, and 3) add coolant until the coolant is filled to the F line.
      • Run the engine at 2000 RPM until the coolant level has stabilized.
    8. Press the No. 1 and No. 2 radiator hoses several times by hand to bleed air.
      CAUTION:
      • Wear protective gloves.
      • Be careful as the radiator hoses are hot.
      • Keep your hands away from the fan.
    9. Stop the engine, and wait until the engine coolant cools down to ambient temperature.
      CAUTION: Do not remove the radiator cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
    10. Check that the coolant level is between the F and L lines.

      If the coolant level is below the L line, repeat all of the procedures above.

      If the coolant level is above the F line, drain coolant so that the coolant level is between the F and L lines.

      Fig 3: Identifying Engine Coolant Level
      G05638085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT FOR COOLANT LEAK  (See ON-VEHICLE INSPECTION  )
  10. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  11. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH  (See INSTALLATION )
  12. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH  (See INSTALLATION )
  13. INSPECT ENGINE COOLANT LEVEL  (See ON-VEHICLE INSPECTION  )
  14. INSTALL UPPER RADIATOR SUPPORT SEAL  (See INSTALLATION )
  15. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION )
  16. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
