Engine Oil Cooler: Components

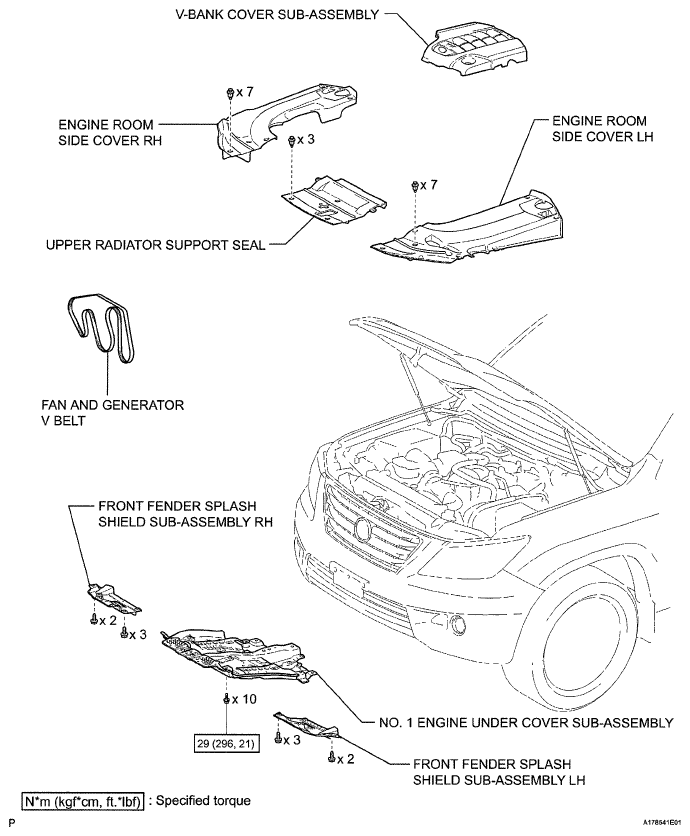

Fig 1: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

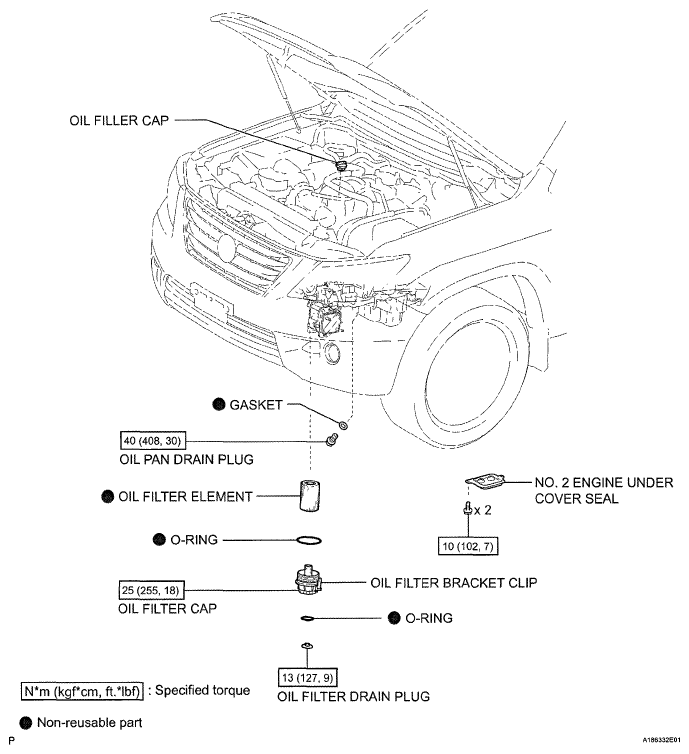

Fig 2: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

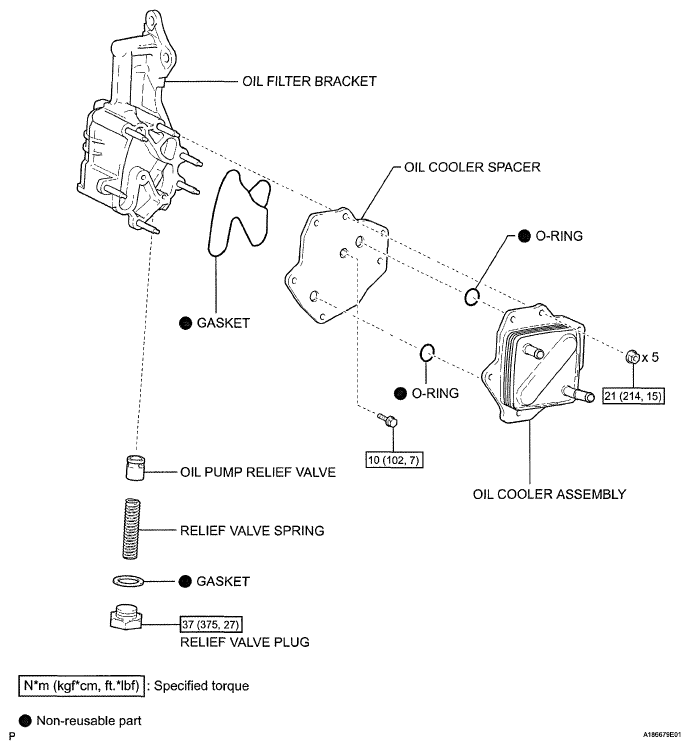

Fig 3: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Engine Oil Cooler Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
