Oil Pressure Sensor: Components

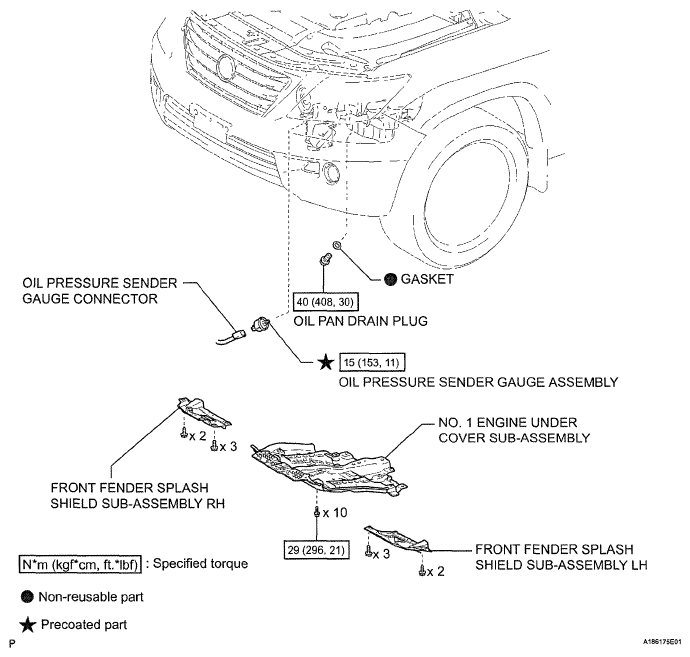

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications
G05762062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
