Air Fuel Ratio Sensor
›
Components
Air Fuel Ratio Sensor: Components

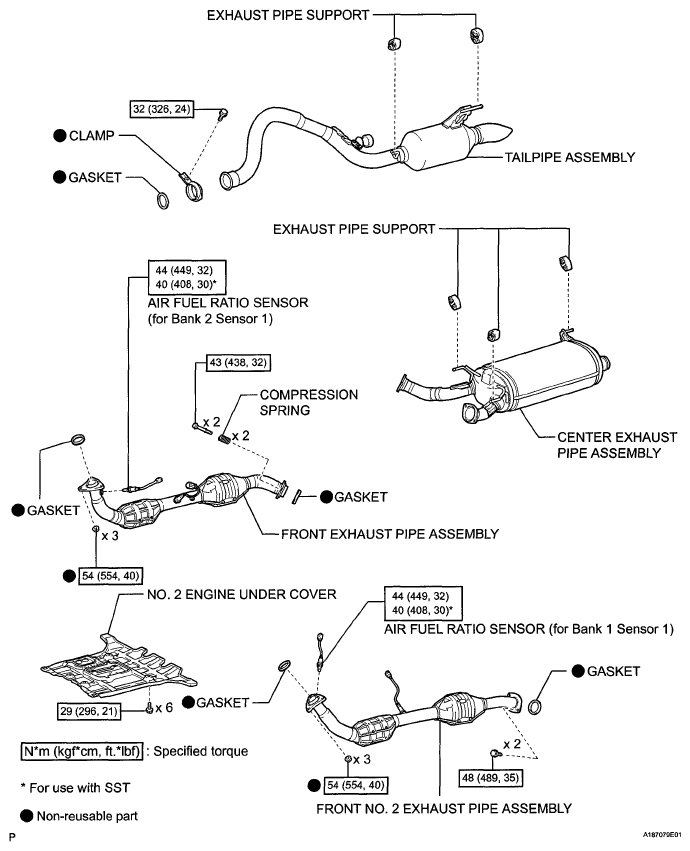

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
