Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation
›
Cranking Holding Function Circuit
›
Wiring Diagram
Cranking Holding Function Circuit: Wiring Diagram

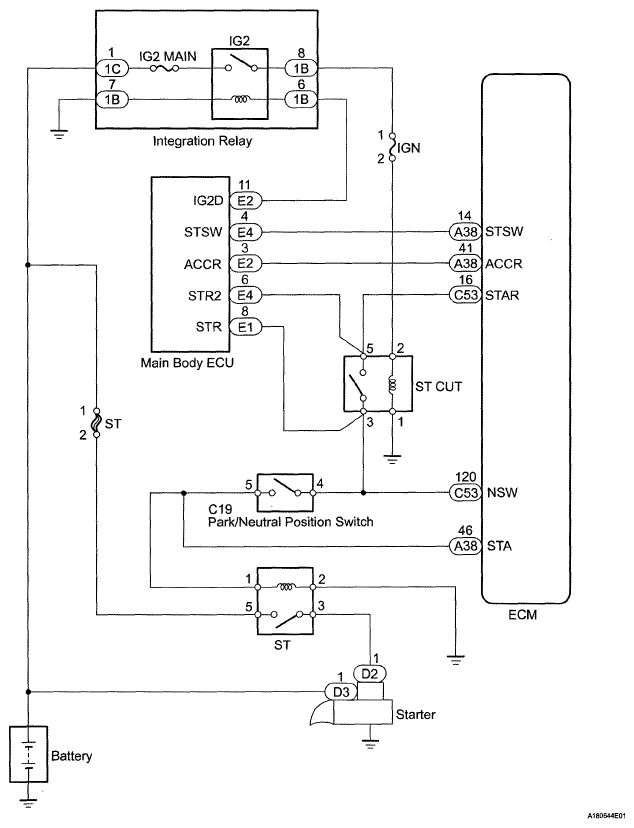

Fig 1: Cranking Holding Control System - Wiring Diagram
