Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation
›
ECM Power Source Circuit
›
Wiring Diagram

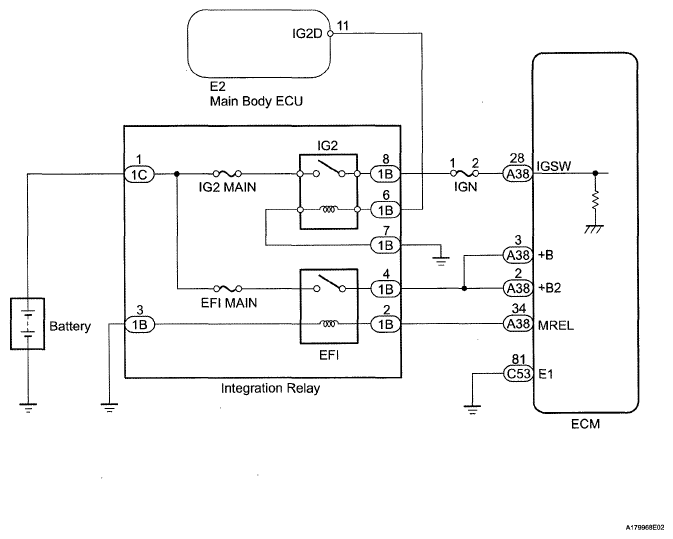

ECM Power Source Circuit: Wiring Diagram
Fig 1: ECM Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
