Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation: ECM: Components

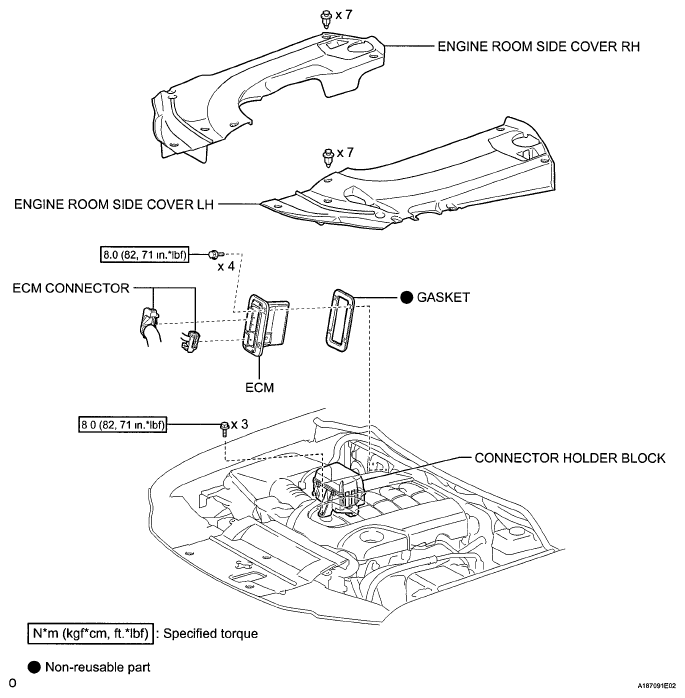

Fig 1: ECM Replacement Components With Torque Specifications
G05757861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
