Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation
›
EVAP System
›
Wiring Diagram
EVAP System: Wiring Diagram

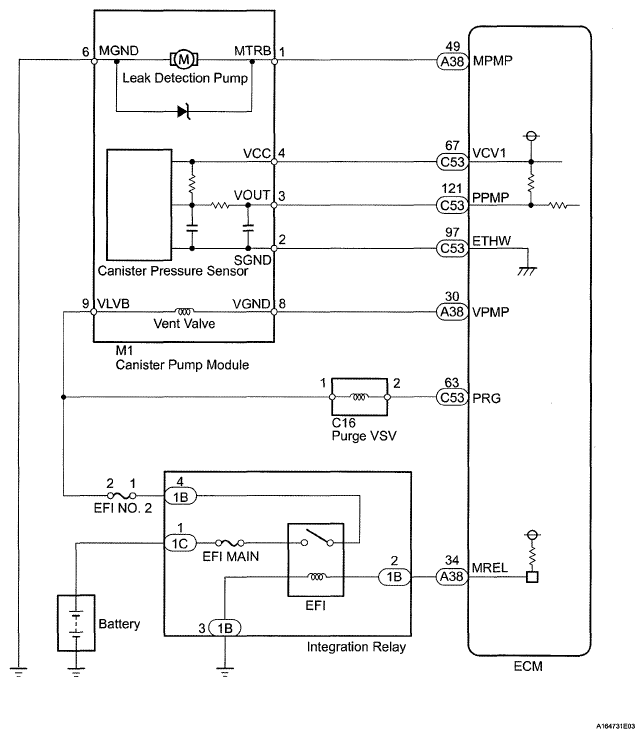

Fig 1: Evaporative Emission Control System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
