Ignition Coil And Spark Plug: Components

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

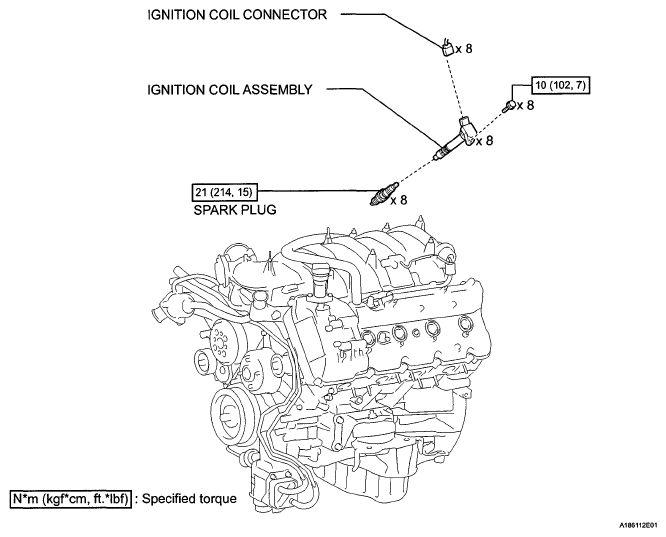

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
