Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation
›
Ignition System
›
Parts Location
Parts Location

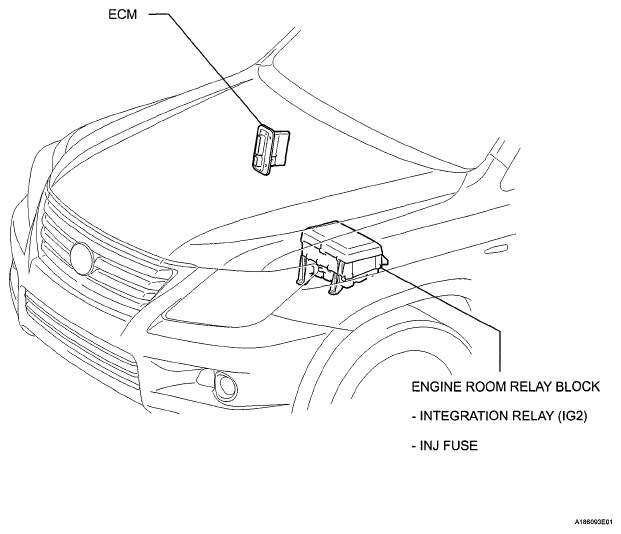

Fig 1: Identifying Ignition System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

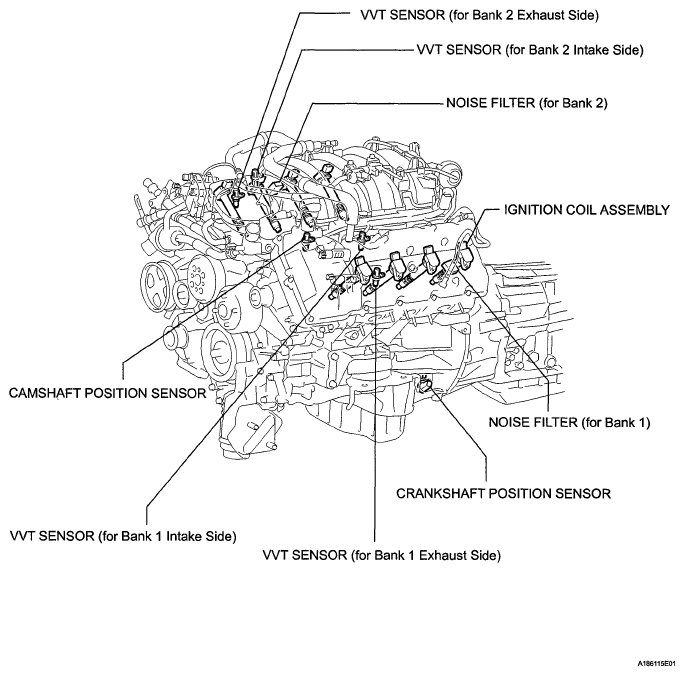

Fig 2: Identifying Ignition System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
