Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation
›
Fuel Injector Circuit
›
Wiring Diagram
Fuel Injector Circuit: Wiring Diagram

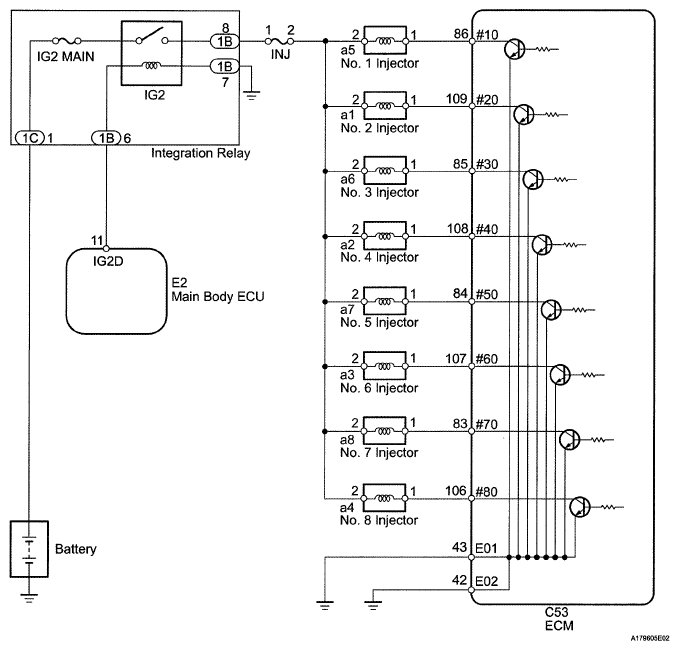

Fig 1: Fuel Injector - Wiring Diagram
