Steering Actuator: Components

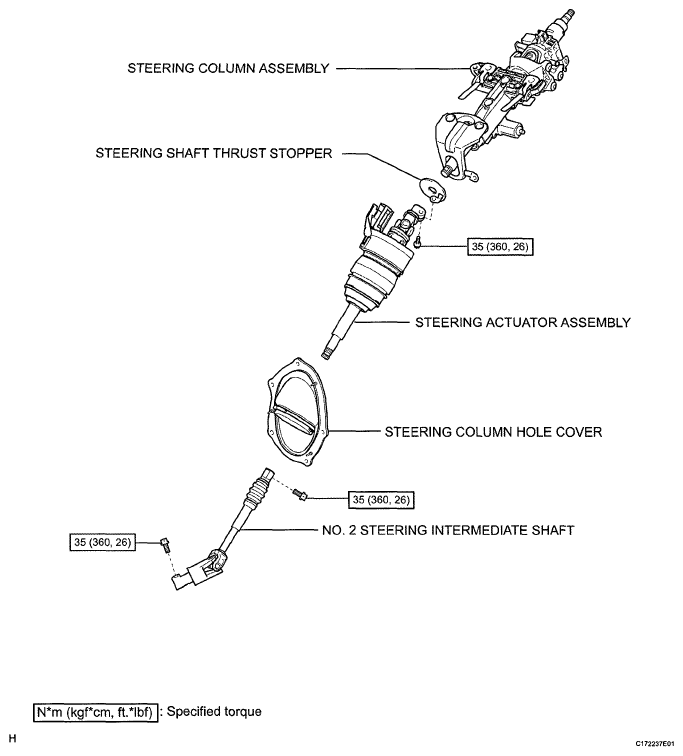

Fig 1: Steering Actuator Replacement Components With Torque Specifications

G05762031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
