Access Mode Switch: Components

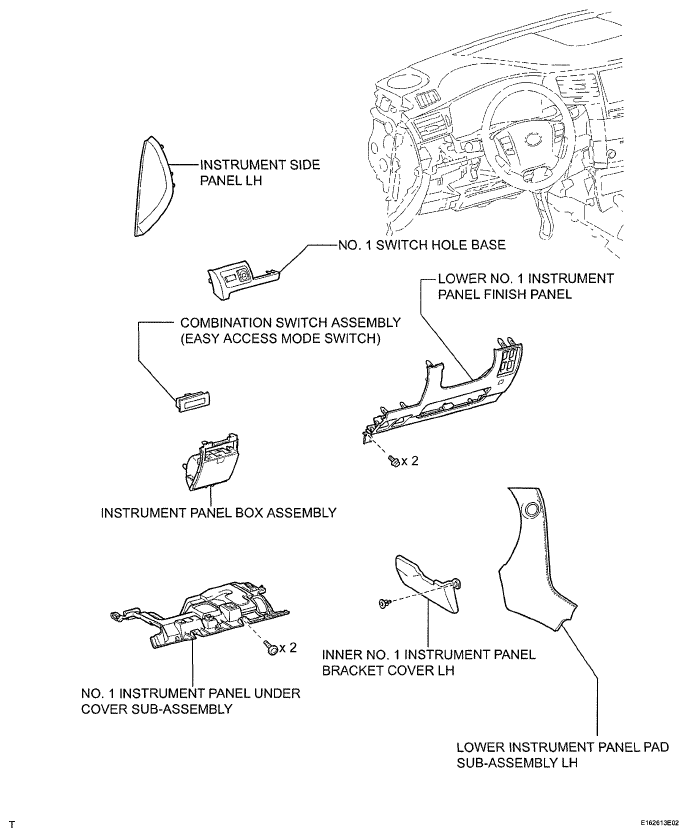

Fig 1: Identifying Access Mode Switch Components
G05761515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
