Suspension Control Cylinder: Components

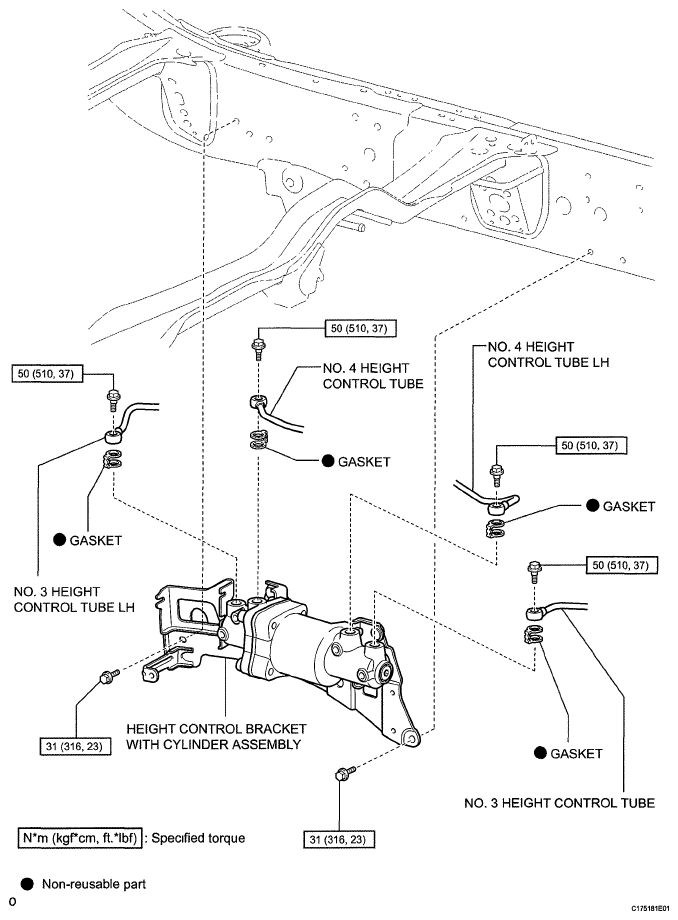

Fig 1: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

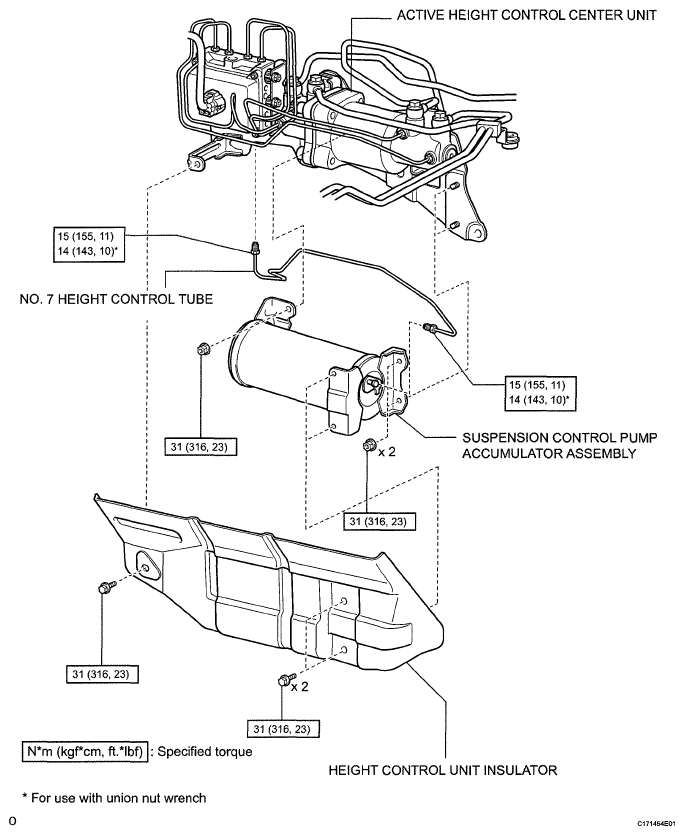

Fig 3: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

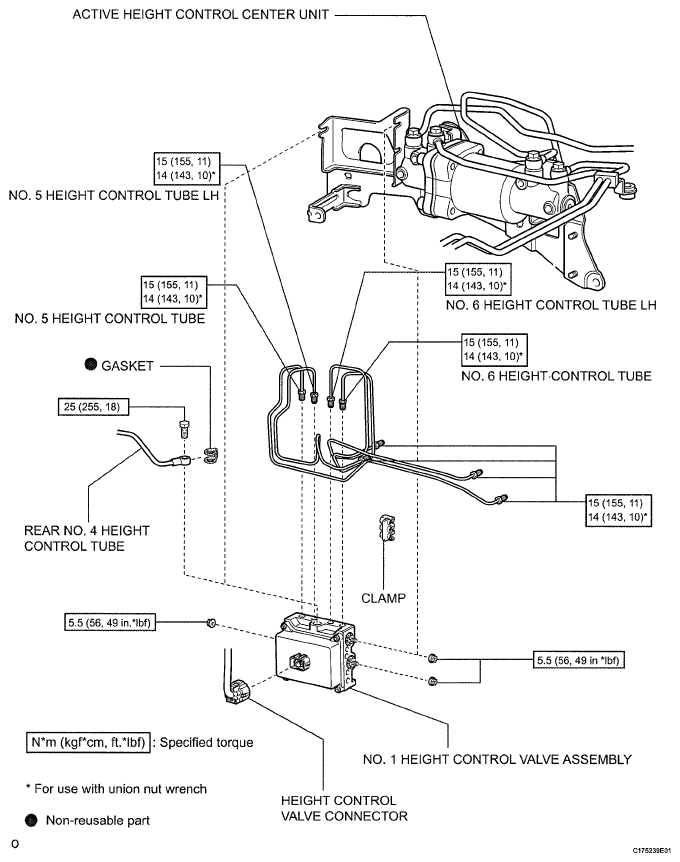

Fig 4: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

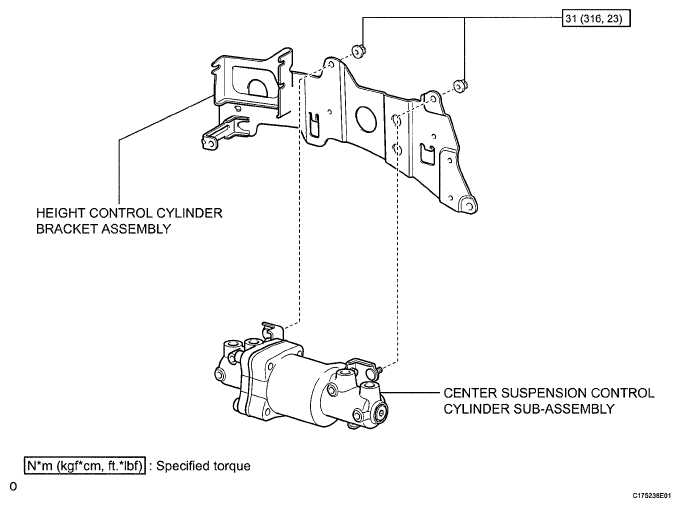

Fig 5: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
